Category >> CONTROL PRODUCTS (อุปรกรณ์ควบคุม) >> ABB

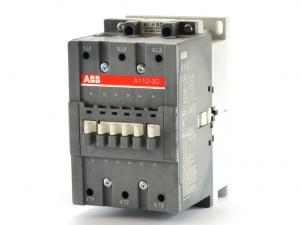

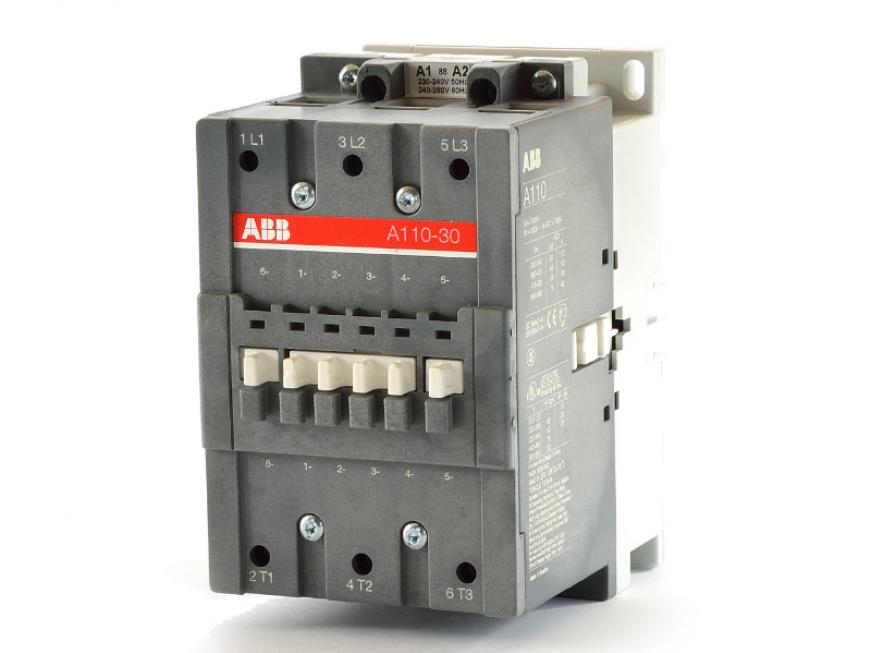

ABB Block Contactors ABB A110-30-11 220-230V 50Hz / 230-240V 60Hz

จำหน่าย ABB

Block Contactors คอนแทคเตอร์คุณภาพสูง เหมาะกับการใช้งาน ในอุตสาหกรรมต่างๆ

ITEM CODE : NUEVO ABB 1SFL451001R8011

ABB A110-30-11 220V

สินค้าใหม่ลดล้างสต๊อก !!

ราคา9,000 บาท

General Information

Extended Product Type:

A110-30-11 220-230V 50Hz / 230-240V 60Hz

Product ID:

1SFL451001R8011

EAN:

7320500141595

Catalog Description:

A110-30-11 220-230V 50Hz / 230-240V 60Hz Contactor

Long Description:

A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V.Operated with control voltage, versions from 24â€¦.690 AC, 50 and 60 Hz

Dimensions

Product Net Width:

102.0 mm

Product Net Depth:

123.5 mm

Product Net Height:

148.0 mm

Product Net Weight:

2.040 kg

Container Information

Package Level 1 Units:

1 piece

Package Level 1 Width:

140 mm

Package Level 1 Length:

140 mm

Package Level 1 Height:

170 mm

Package Level 1 Gross Weight:

2 kg

Package Level 1 EAN:

7320500141595

Technical

Number of Main Contacts NO:

Number of Main Contacts NC:

Number of Auxiliary Contacts NO:

Number of Auxiliary Contacts NC:

Rated Operational Voltage:

Main Circuit 1000 V

Rated Frequency (f):

Main Circuit 50/60 Hz

Conventional Free-air Thermal Current (Ith):

acc. to IEC 60947-4-1, Open Contactors q = 40 °C 160 A

Rated Operational Current AC-1 (Ie):

(690 V) 55 °C 145 A

(690 V) 40 °C 160 A

(690 V) 70 °C 130 A

Rated Operational Current AC-3 (Ie):

(1000 V) 55 °C 30 A

(220 / 230 / 240 V) 55 °C 110 A

(415 V) 55 °C 110 A

(690 V) 55 °C 82 A

(440 V) 55 °C 100 A

(380 / 400 V) 55 °C 110 A

(500 V) 55 °C 100 A

Rated Operational Power AC-3 (Pe):

(500 V) 59 kW

(1000 V) 40 kW

(690 V) 75 kW

(220 / 230 / 240 V) 30 kW

(380 / 400 V) 55 kW

(440 V) 59 kW

(415 V) 59 kW

Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1:

8 x Ie AC-3

Rated Making Capacity AC-3 acc. to IEC 60947-4-1:

10 x Ie AC-3

Short-Circuit Protective Devices:

gG Type Fuses 200 A

Rated Short-time Withstand Current (Icw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 800 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 175 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 500 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1320 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 350 A

Maximum Breaking Capacity:

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1160 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 800 A

Maximum Electrical Switching Frequency:

AC-3 300 cycles per hour

AC-1 300 cycles per hour

AC-2 / AC-4 150 cycles per hour

Rated Operational Current DC-1 (Ie):

(110 V) 2 Poles in Series, 40 °C 160 A

(220 V) 3 Poles in Series, 40 °C 160 A

Rated Operational Current DC-3 (Ie):

(110 V) 2 Poles in Series, 40 °C 160 A

(220 V) 3 Poles in Series, 40 °C 160 A

Rated Operational Current DC-5 (Ie):

(110 V) 2 Poles in Series, 40 °C 160 A

(220 V) 3 Poles in Series, 40 °C 160 A

Rated Insulation Voltage (Ui):

acc. to UL/CSA 600 V

acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V

Rated Impulse Withstand Voltage (Uimp):

Main Circuit 8 kV

Mechanical Durability:

10 million

Maximum Mechanical Switching Frequency:

3600 cycles per hour

Coil Operating Limits:

(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) °C

Rated Control Circuit Voltage (Uc):

60 Hz 230 … 240 V

50 Hz 220 … 230 V

Coil Consumption:

Pull-in at Max. Rated Control Circuit Voltage 60 Hz 450 V·A

Holding at Max. Rated Control Circuit Voltage 50 Hz 22 V·A

Pull-in at Max. Rated Control Circuit Voltage 50 Hz 350 V·A

Holding at Max. Rated Control Circuit Voltage 60 Hz 26 V·A

Operate Time:

Between Coil Energization and NO Contact Closing 10 ... 25 ms

Between Coil De-energization and NO Contact Opening 10 ... 18 ms

Between Coil De-energization and NC Contact Closing 7 ... 15 ms

Between Coil Energization and NC Contact Opening 7 ... 22 ms

Connecting Capacity Main Circuit:

Flexible with Cable End 2x6…35 mm²

Bar 30 mm²

Rigid 1x10…95 mm²

Connecting Capacity Auxiliary Circuit:

Solid 2x1…4 mm²

Flexible with Insulated Ferrule 1x0.75…2.5 mm²

Stranded 2x1…4 mm²

Flexible 1x0.75…2.5 mm²

Flexible with Ferrule 2x0.75…2.5 mm²

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10

Connecting terminals (delivered in open position) Main poles:

M8 hexagon socket screw with single connector

Terminal Type:

Cable Clamp
