Category >> โซลีนอย วาล์ว PS-12
รหัส : PS-12

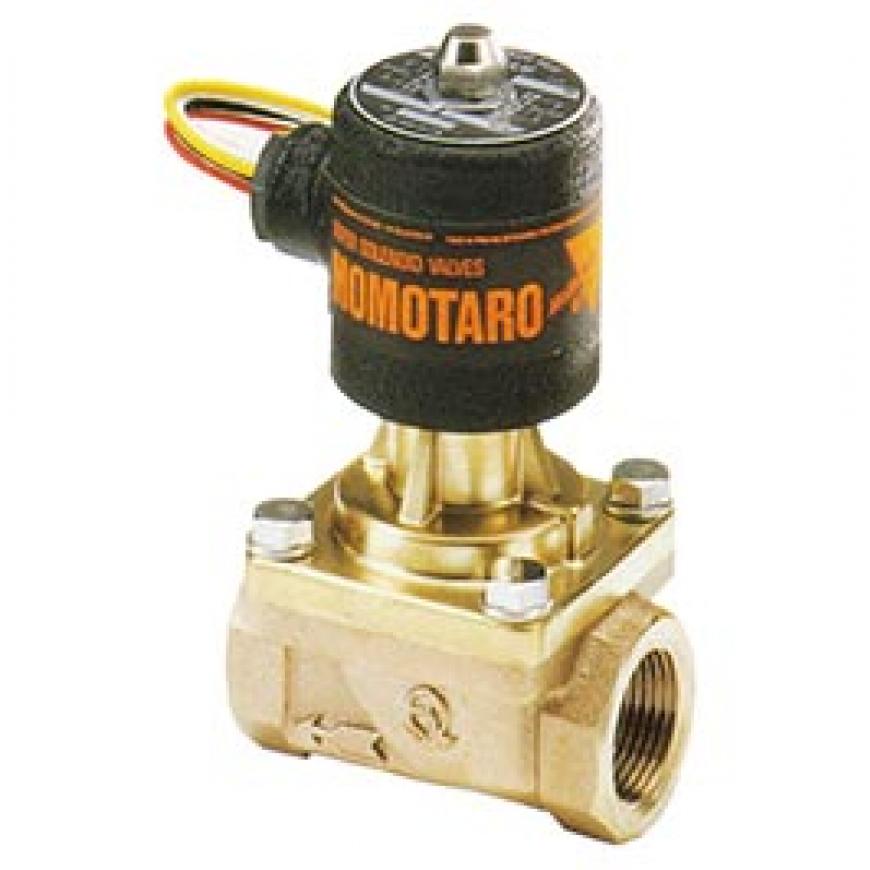

PS-12(Solinoid Valve)
For Manufacturing and Building Equipments etc. Piston-type solenoid valve
Features
For Manufacturing and Building Equipments etc. Piston-type solenoid valve
Features
- For steam water, air and oil.
- Wide rangeof working pressure:0~1.0MPa
- Free installation in vertical or horizontal direction( size 10~50mm).
- Energized open or energized close operation.
Specifications
| Operation | Energized open | energized close |
| Model Name | PS-10 | PS-12C |
| Code name | PS12-W | PS12C-W |
| Applicable fluid | Steam, water, air & oils (Kerosenem light oil, gasoline level) | |
| Applicable pressure | 0~1.0MPa. | |
| Min.pressure differential across the disc | 0MPa(0.03MPa for coil installed horizontally.) | |
| Fluid temperature | 5~180°C(For hot water:Max 100°C) | |
| Leakage allowance | Steam, waater& oil:Nil(Confirm at pressure gauge) Air:50ml/min(standard state) or less (when 0.05-1.0MPa) | |
| Rated voltage | Common use:AC100/200V 50/60Hz* | |
| Insulation | Class H (Silicone mold) | |
| Ambient temperature | 5-60°C | |
| Protection | Dust & drip proof (When used outdoors, also use TB-03 Type terminal boxm as rain proof type) | |
| End conection | Screwed JIS Rc | |
| Materials | Body(Cast bronze), Disc (Stainless steel with Teflon tio) | |
| Installation | Size 50mm or smaller: Can be installed on both horizontal and vertical piping at any angle between the vertical( when the coil part is placed above) and horiziontal. Size 65MM:install the valve vertically in horizontal piping placing coil part above. | |
| Piston & cylinder | Cast bronze | Stainless steel |
| Valve body pressure | Hydraulic 2.0MPa. | |
