Category >> เทมเปอเรเจอร์ เรกูเลทติ้ง TD-8
รหัส : TD-8

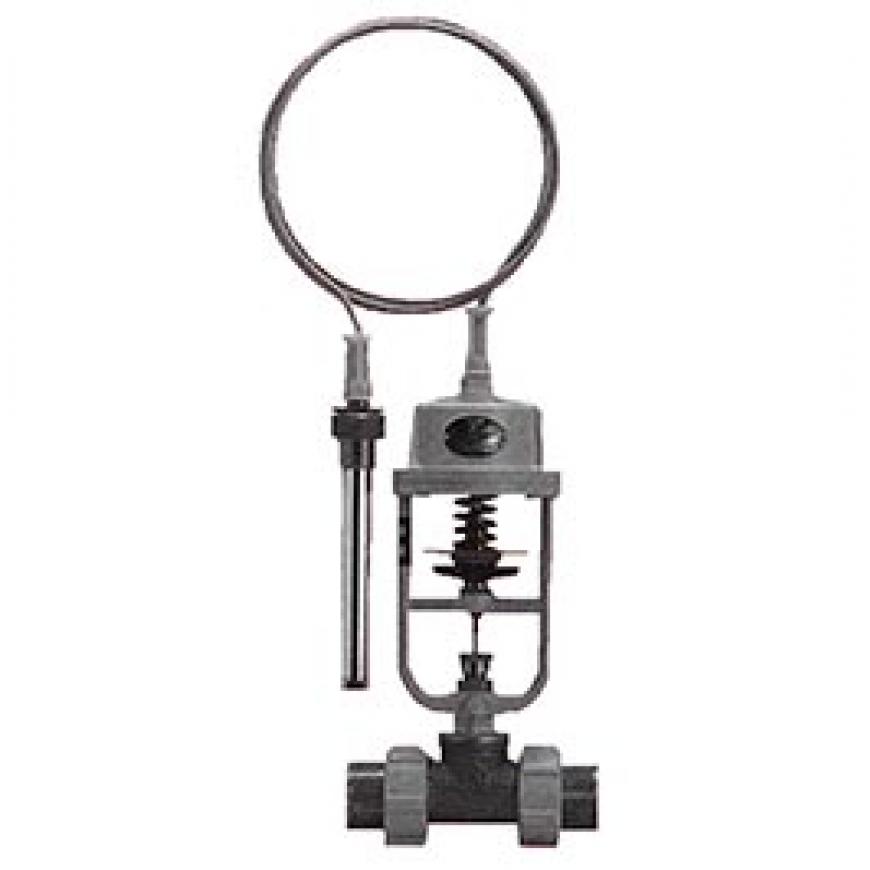

TD-8 (Temperature Regulating Valve)
Features
Compact Structure, Large capacitySingle seat valve with less leakage.
Specification TD-2 TYPE (Heating), TD-2A(Cooling)
| Utility | Heating | Cooling | |||
| Model Name | TD-8 | TD-8A | |||
| Type | Liquids | Gases | Liquids | Gases | |
| Code name | TD8W-J □ | TD8G-J | TD8AW-F | TD8AG-F | |
| ※ 1,2 or 3 for adjustment temperature range is required in □ | |||||
| Adjustment temperature range | 1:40~60°C 1:60~80°C *1 *2 1:80~100°C | Adjustment temperature range is is 20°C, in breath between 40 and 100°*2 | |||
| Applicable ambient temperature | Setting temperarture~10° or below | ||||
| Applicable Fluid | Steam | Water | |||
| Fluid to be heated or cooled | Water, oil & liquids | Gases | Water,oil & liquids | Gases | |
| Seat type | Pressure balance type single seated | ||||
| Leakage allowance | P0.05% or less than the rated flow | ||||
| End connection | Screwed JIS Rc(union) | ||||
| Applicable temperature | Max. 184°C | Max. 60°C | |||
| Length of capillary tube | 2m(Available up to 5m) | ||||
| Materials | Body | Cast bronze | |||
| Disc & Seat | Cast bronze | ||||
| Bellows | Phosphor bronze | ||||
| Thermo buib | Copper tube, Chrome plated | Copper tube, Copper with fin | Copper tube, Chrome plated | Copper tube, Copper with fin | |
| Applicable pressure for thermo bulb | Max. 1.0MPa | ||||
| Valve body pressure test | Hydraulic 1.5MPa. | ||||
| Pressure limit at inlet | 0.7MPa | ||||
