JENOPTIK เครื่องมือวัด Roughness and contour..
JENOPTIK เครื่องทดสอบความเรียบผิวแบบพกพา Roughness and contour

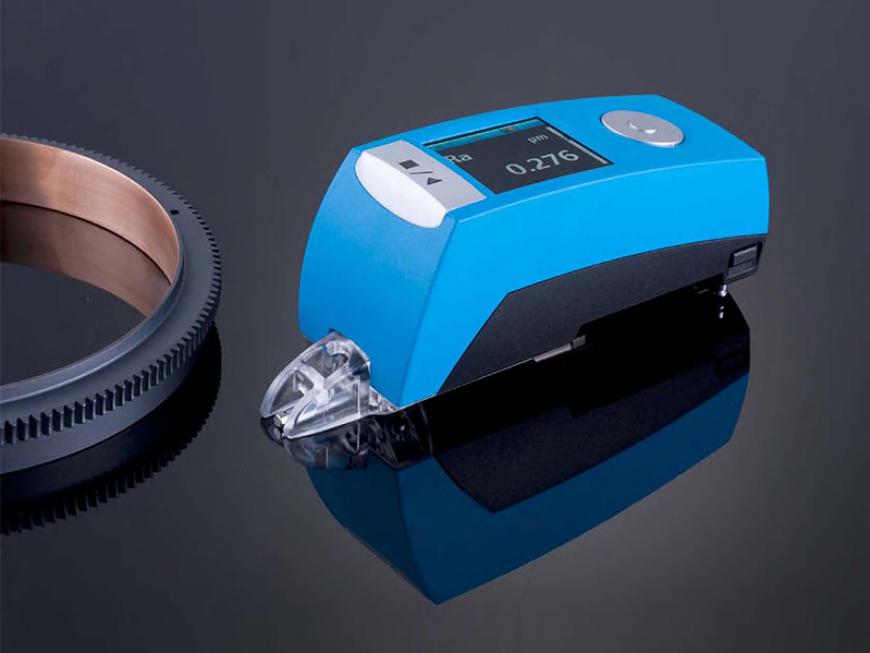

HOMMEL-ETAMIC W5
HOMMEL-ETAMIC W5 is a powerful roughness meter for surface roughness measurement and handling is very easy and intuitive for a user in the shop floor. Portable and battery supplied device is compact and light in design for every day using.
- roughness meter, class accuracy 1 according to DIN 4772
- large color display including tolerance evaluation
- 5 measuring programs
- memory for maximum 100 profiles 10 000 measurement values
- T1E/T3E probes – compatible with all HOMMEL-ETAMIC probes
- probe protection with LED lighting
- optional P5 printer with wireless connection to basic unit via Bluetooth
Evaluated parameters
| DIN EN ISO 4287 | DIN EN ISO 4287: Ra, Rz, Rmax, Rt, Rq, RSm, Rmr(c), RSK |
| DIN EN ISO 13565: | Rk, Rpk, Rvk, Mr1,Mr2, A1, A2 |
| MOTIF ISO 12085 | R, Rx, AR |
| ASME B46 | Rp, Rpm |
| JIS B601 | Rz-JIS, Ry (odpovídá Rz), tp (odpovídá Rmr) |
| DIN EN 10049 | RPc |
| Daimler DB N 31007 | R3z |
| Hommel-Etamic | V0 |
| maximum traverse length Lt: | up to 17,5 mm | |
| traverse length according to ISO/JIS: | 1,5 / 4,8 / 15 mm | |
| >0,64 / 3,2 / 16 / mm | ||
| free adjustable cut-off: | 0,25 / 0,8 / 2,5 mm | |
| measurement range/resolution: | 320 µm (-210/+110) / 0,01 µm | |
| traverse speed: | 0,15 / 0,5 / 1/ mm/sec, return speed 3 mm/sec | |
| filters: | Phase-correct profile filter (Gauss) according to DIN EN ISO 11562 | |
| Double Gauss filter according to ISO 13565-1 | ||
| Ls (λs) – short wave profile filter according to DIN ISO 3274 | ||
| Robust Gauss filter according ISO 16610-31 | ||
| accuracy class 1 (± 5 %) DIN 4772 | ||
| selectable µm / inch | ||
| battery: Li-Ion battery, 800 measurement cycles | ||
| input: 100V to 240 VAC, charging time: 4 h | ||
| ||
Scope of delivery
- basic unit W5
- T1E probe (2 µm, angle 90°)
- mains adapter/charger
- built-in Li-Ion battery
- USB cable
- probe cover
- factory calibration certificate
- operation instructions
- protection case
HOMMEL-ETAMIC P5 printer
- printing method: completely fixed thermal line
- paper width: 57 mm
- paper roll: max 31 mm
- resolution: 8 points/mm, 384 points/line
- printing speed: 50 mm/s, 16 lines/s
- printed information: measuring conditions, parameters, surface roughness profile
- interface: Bluetooth
- input 100 V to 240 V
