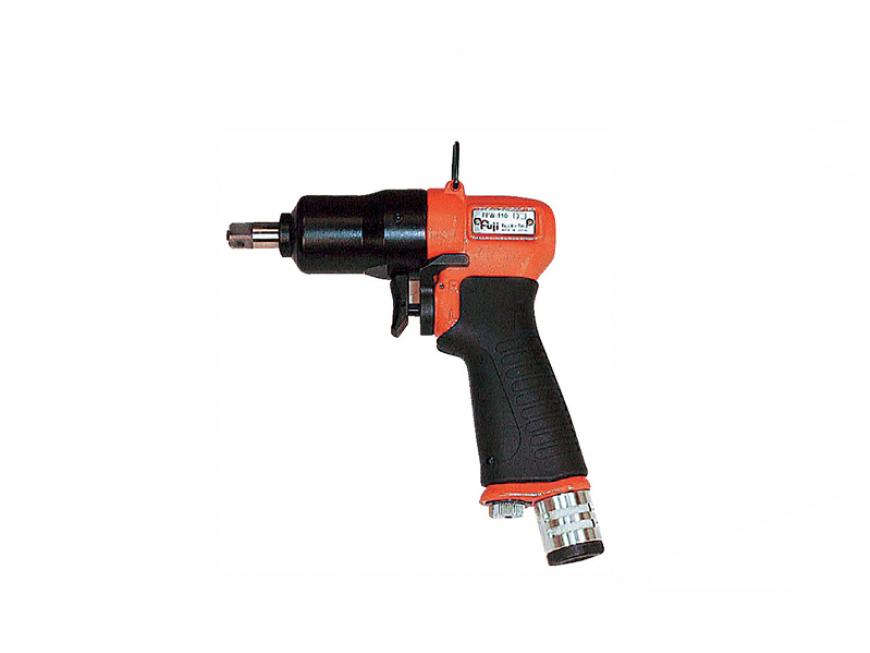

Category >> FUJI PULSE WRENCHES NON SHUT-OFF TYPE FPW-110-1
รหัส : FPW-110-1รุ่น : FPW-110-1
FUJI PULSE WRENCHES NON SHUT-OFF TYPE
PISTOL GRIP MODELS
SQUARE DRIVE
Sq. 6.35 mm (1/4") ~ 9.5 mm (3/8") ~ 19 mm (3/4")
| Model | FPW-110-1 |
| Bolt Size (mm) | M4~M5 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 7.5~13 (2~7.5) , 0.8~1.3 (0.2~0.8), 5.5~9.6 (1.4~5.5) |
| Free Speed (min-1) | 4,500 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 143, 5 41/64" |
| Weight (Without Socket) (kg/lb) | 0.75, 1.7 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.20, 7.1 |
| Air Hose Size (mm/in) | 6.3, 1/4 " |
| Model | FPW-110D-1 |
| Bolt Size (mm) | M4~M5 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 7~11 (2~7), 0.7~1.1 (0.2~0.7), 5.2~8.1 (1.4~5.1) |
| Free Speed (min-1) | 4,500 |
| Square Drive Size (mm/in) | 6.36, 1/4" |
| Overall Length (Without Socket) (mm/in) | 149, 5 7/8" |
| Weight (Without Socket) (kg/lb) | 0.76, 1.7 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.20, 7.1 |
| Air Hose Size (mm/in) | 6.3, 1/4 " |
| Model | FPW-110D-10 |
| Bolt Size (mm) | M4~M5 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 7~11, 0.7~1.1, 5.2~8.1 |
| Free Speed (min-1) | 4,500 |
| Square Drive Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 149, 5 7/8" |
| Weight (Without Socket) (kg/lb) | 0.76, 1.7 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.20, 7.1 |
| Air Hose Size (mm/in) | 6.3, 1/4 " |
| Model | FPW-1660-1 |
| Bolt Size (mm) | M16~M18 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 160~270, 16.3~27.5, 118~199.1 |
| Free Speed (min-1) | 3,000 |
| Square Drive Size (mm/in) | 19.0, 3/4" |
| Overall Length (Without Socket) (mm/in) | 243, 9 37/64" |
| Weight (Without Socket) (kg/lb) | 3.80, 8.4" |
| Air Consumption (At Load) (m3/min, ft3/min) | 1.20, 42.4 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size - PT or NPT 1/4".
» Figures in ( ) can be obtained at position of "L" mark on the regulator knob, but for others, at "H" mark.
» Figures in ( ) can be obtained at position of "L" mark on the regulator knob, but for others, at "H" mark.
