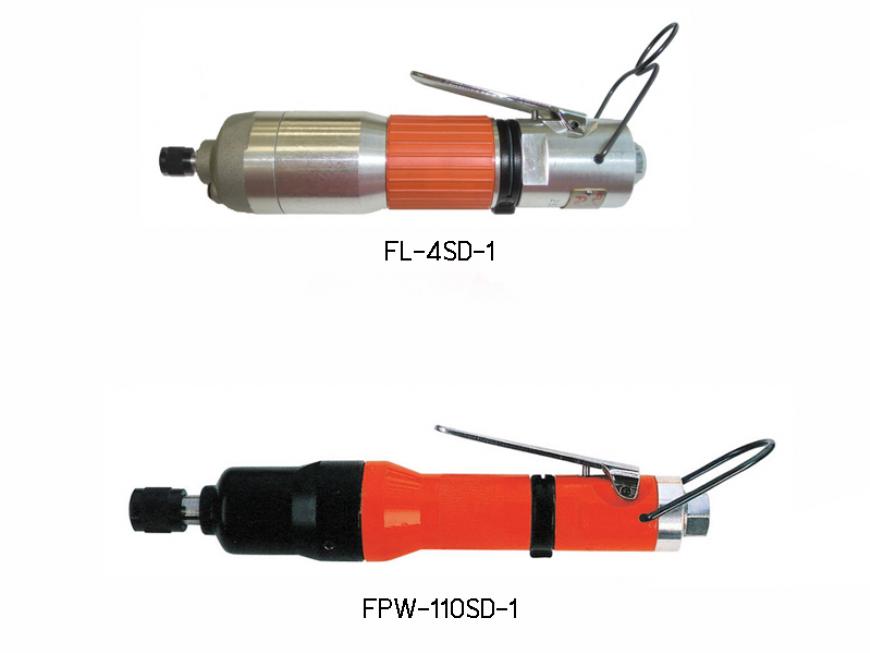

Category >> FUJI PULSE WRENCHES NON SHUT-OFF TYPE FL-4SD-1
รหัส : FL-4SD-1รุ่น : FL-4SD-1
FUJI PULSE WRENCHES NON SHUT-OFF TYPE
STRAIGHT MODELS
BIT SHANK
Hex. 6.35 mm (1/4")
| Model | FL-4SD-1(10) |
| Bolt Size (mm) | M4~M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 15~25, 1.5~2.6, 11.1~18.4 |
| Free Speed (min-1) | 5,500 |
| Square Drive Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 226, 8 57/64" |
| Weight (Without Socket) (kg/lb) | 0.88, 1.9 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.35, 12.4 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FL-5SD-1(10) |
| Bolt Size (mm) | M6~M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 20~34, 2.0~3.5, 14.8~25.1 |
| Free Speed (min-1) | 5,700 |
| Square Drive Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 226, 8 57/64" |
| Weight (Without Socket) (kg/lb) | 0.88, 1.9 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.37, 13.1 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FL-6SD-1(10) |
| Bolt Size (mm) | M6~M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 25~37, 2.6~3.8, 18.4~27.3 |
| Free Speed (min-1) | 5,800 |
| Square Drive Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 238, 9 3/8" |
| Weight (Without Socket) (kg/lb) | 0.95, 2.1 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.50, 17.7 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FPW-110SD-1(10) |
| Bolt Size (mm) | M4 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 2~7, 0.2~0.7, 1.5~5.2 |
| Free Speed (min-1) | 3,200 |
| Square Drive Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 224, 8 53/64" |
| Weight (Without Socket) (kg/lb) | 0.65, 1.4 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.20, 7.1 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FPW-330SD-1(10) |
| Bolt Size (mm) | M5 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 12~17, 1.2~1.7, 8.9~12.5 |
| Free Speed (min-1) | 4,400 |
| Square Drive Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 226, 8 57/64" |
| Weight (Without Socket) (kg/lb) | 0.88, 1.9 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.30, 10.6 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
» Air Inlet Thread Size - PT or NPT 1/4".
» Figures in ( ) can be obtained at the position of "L" mark on the regulator knob, but for others, at "H" mark.
» Figures in ( ) can be obtained at the position of "L" mark on the regulator knob, but for others, at "H" mark.
