Category >> FUJI PULSE WRENCHES NON SHUT-OFF TYPE FPW-770SC-1
รหัส : FPW-770SC-1รุ่น : FPW-770SC-1

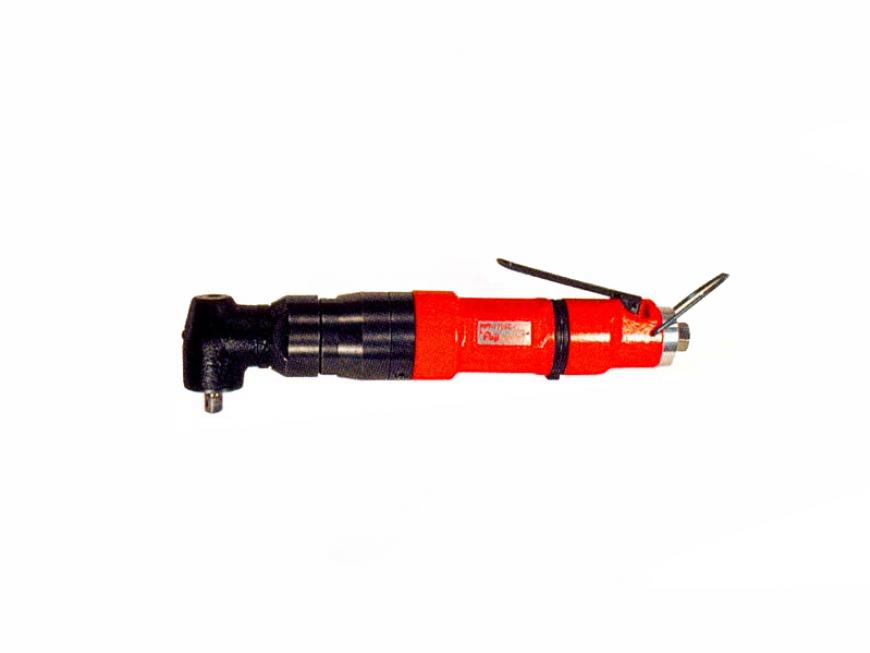

FUJI PULSE WRENCHES NON SHUT-OFF TYPE
ANGLE HEAD SQUARE DRIVE TYPE
Sq. 9.5 mm (3/8")
| Model | FPW-440SC-1 |
| Bolt Size (mm) | M4~M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 13~24, 1.3~2.4, 9.6~17.7 |
| Free Speed (min-1) | 5,000 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 255, 10 3/64" |
| Weight (Without Socket) (kg/lb) | 1.28, 2.8 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.39, 13.8 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FPW-550SC-1 |
| Bolt Size (mm) | M6~M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 22~35, 2.2~3.6, 16.2~25.8 |
| Free Speed (min-1) | 5,500 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 255, 10 3/64" |
| Weight (Without Socket) (kg/lb) | 1.29, 2.8 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.39, 13.8 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FPW-660SC-1 |
| Bolt Size (mm) | M6~M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 25~43, 2.6~4.4, 18.4~31.7 |
| Free Speed (min-1) | 5,500 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 267, 10 33/64" |
| Weight (Without Socket) (kg/lb) | 1.40, 3.1 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.48, 16.9 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FPW-770SC-1 |
| Bolt Size (mm) | M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 33~50, 3.4~5.1, 24.3~36.9 |
| Free Speed (min-1) | 6,300 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 271, 10 43/64" |
| Weight (Without Socket) (kg/lb) | 1.70, 3.7 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.50, 17.7 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size - PT or NPT 1/4".
