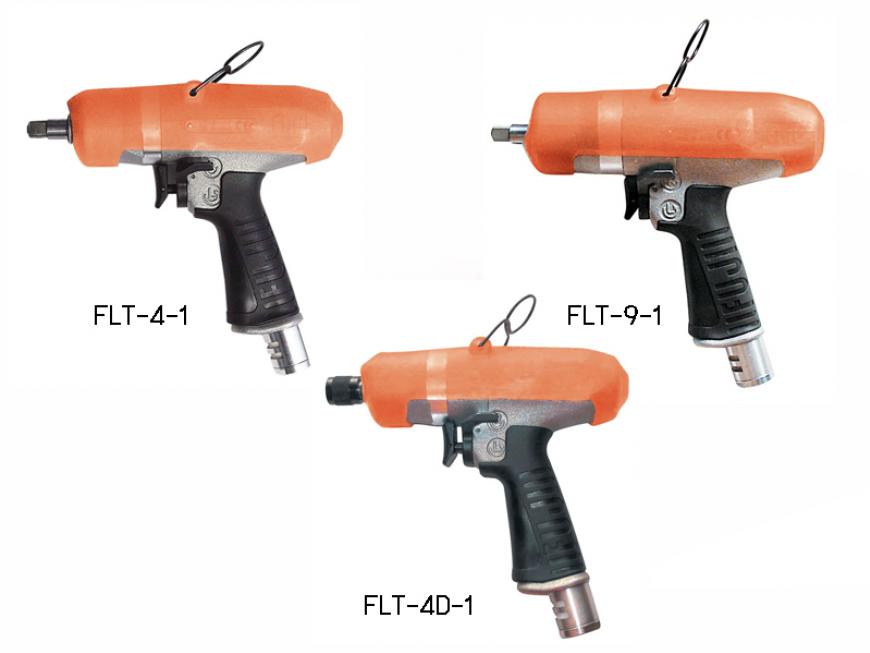

Category >> FUJI PULSE WRENCHES SHUT-OFF TYPE PISTOL GRIP MODELS FLT-4-1
รหัส : FLT-4-1รุ่น : FLT-4-1
FUJI PULSE WRENCHES SHUT-OFF TYPE PISTOL GRIP MODELS
Sq. 9.5 mm (3/8") ~ 12.7 mm (1/2") - Hex. 6.35 (1/4")
Square Drive-Bit Shank
| Model | FLT-4-1 |
| Bolt Size (mm) | M5~M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 5~12, 0.5~1.2, 3.6~6.8 |
| Free Speed (min-1) | 6,200 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 181, 7 1/8" |
| Weight (Without Socket) (kg/lb) | 0.97, 2.1 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.40, 14.1 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FLT-4-1L* |
| Bolt Size (mm) | M5~M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 4~8, 0.4~0.8, 3~6 |
| Free Speed (min-1) | 5,300 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 181, 7 1/8" |
| Weight (Without Socket) (kg/lb) | 0.97, 2.1 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.25, 8.8 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FLT-5-1 |
| Bolt Size (mm) | M6~M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 11~24, 1.1~2.4, 8.1~17.7 |
| Free Speed (min-1) | 6,500 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 181, 7 1/8" |
| Weight (Without Socket) (kg/lb) | 0.97, 2.1 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.45, 15.8 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FLT-5-1L* |
| Bolt Size (mm) | M6~M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 8~18, 0.8~1.8, 6~13 |
| Free Speed (min-1) | 5,500 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 181, 7 1/8" |
| Weight (Without Socket) (kg/lb) | 0.97, 2.1 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.30, 10.5 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FLT-6-1 |
| Bolt Size (mm) | M6~M10 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 22~35, 2.2~3.5, 16.2~25.8 |
| Free Speed (min-1) | 6,300 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 192, 7 19/32" |
| Weight (Without Socket) (kg/lb) | 1.00, 2.2 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.55, 19.4 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FLT-6-1L* |
| Bolt Size (mm) | M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 15~26, 1.5~2.6, 11~19 |
| Free Speed (min-1) | 5,700 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 192, 7 19/32" |
| Weight (Without Socket) (kg/lb) | 1.00, 2.2 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.37, 13.0 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FLT-7-1 |
| Bolt Size (mm) | M8~M10 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 30~55, 3.0~6.1, 22.1~44.2 |
| Free Speed (min-1) | 6,100 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 189.5, 7 29/64" |
| Weight (Without Socket) (kg/lb) | 1.10, 2.4 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.60, 21.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FLT-7-1L* |
| Bolt Size (mm) | M8~M10 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 24~45, 2.4~4.6, 18~33 |
| Free Speed (min-1) | 5,400 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 189.5, 7 29/64" |
| Weight (Without Socket) (kg/lb) | 1.10, 2.4 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.38, 13.4 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FLT-9-1 |
| Bolt Size (mm) | M10 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 50~85, 5.1~8.6, 36.8~62.6 |
| Free Speed (min-1) | 4,800 |
| Square Drive Size (mm/in) | 12.7, 1/2" |
| Overall Length (Without Socket) (mm/in) | 209, 8 15/64" |
| Weight (Without Socket) (kg/lb) | 1.60, 3.5 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.68, 24.0 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FLT-9-1L* |
| Bolt Size (mm) | M10 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 45~70, 4.6~7.1, 33~52 |
| Free Speed (min-1) | 4,500 |
| Square Drive Size (mm/in) | 12.7, 1/2" |
| Overall Length (Without Socket) (mm/in) | 209, 8 15/64" |
| Weight (Without Socket) (kg/lb) | 1.60, 3.5 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.40, 14.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FLT-11-1 |
| Bolt Size (mm) | M10~M12 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 70~120, 7.1~13.2, 51.6~95.8 |
| Free Speed (min-1) | 4,500 |
| Square Drive Size (mm/in) | 12.7, 1/2" |
| Overall Length (Without Socket) (mm/in) | 217.5, 8 9/16" |
| Weight (Without Socket) (kg/lb) | 1.85, 4.1 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.80, 28.2 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FLT-11-1L* |
| Bolt Size (mm) | M10~M12 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 65~110, 6.6~11.2, 48~81 |
| Free Speed (min-1) | 4,400 |
| Square Drive Size (mm/in) | 12.7, 1/2" |
| Overall Length (Without Socket) (mm/in) | 217.5, 8 9/16" |
| Weight (Without Socket) (kg/lb) | 1.85, 4.1 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.43, 15.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FLT-13-1 |
| Bolt Size (mm) | M12~M14 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 90~155, 9.1~16.3, 66.3 |
| Free Speed (min-1) | 3,400 |
| Square Drive Size (mm/in) | 12.7, 1/2" |
| Overall Length (Without Socket) (mm/in) | 227.5, 8 61/64 " |
| Weight (Without Socket) (kg/lb) | 2.10, 4.6 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.85, 30.0 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FLT-13/1L* |
| Bolt Size (mm) | M12 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 80~125, 8.1~12.5, 59~93 |
| Free Speed (min-1) | 3,100 |
| Square Drive Size (mm/in) | 12.7, 1/2" |
| Overall Length (Without Socket) (mm/in) | 227.5, 8 61/64 " |
| Weight (Without Socket) (kg/lb) | 2.10, 4.6 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.45, 15.8 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model | FLT-4D-1(10) |
| Bolt Size (mm) | M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 5~12, 0.5~1.2, 3.6~8.8 |
| Free Speed (min-1) | 6,700 |
| Square Drive Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 140, 5 3/64" |
| Weight (Without Socket) (kg/lb) | 0.79, 1.7 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.36, 12.7 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FLT-4D-1(10)L* |
| Bolt Size (mm) | M5 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 5~8, 0.4~0.8, 4~6 |
| Free Speed (min-1) | 5,300 |
| Square Drive Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 140, 5 3/64" |
| Weight (Without Socket) (kg/lb) | 0.79, 1.7 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.25, 8.8 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FLT-5D-1(10) |
| Bolt Size (mm) | M6~M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 11~22, 1.1~2.2, 8.1~16.2 |
| Free Speed (min-1) | 6,300 |
| Square Drive Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 140, 5 3/64" |
| Weight (Without Socket) (kg/lb) | 0.79, 1.7 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.40, 14.1 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FLT-5D-1(10)L* |
| Bolt Size (mm) | M6~M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 8~16, 0.8~1.6, 6~12 |
| Free Speed (min-1) | 5,500 |
| Square Drive Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 140, 5 3/64" |
| Weight (Without Socket) (kg/lb) | 0.79, 1.7 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.30, 10.5 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FLT-6D-1(10) |
| Bolt Size (mm) | M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 19~28, 1.9~2.8, 14~20.6 |
| Free Speed (min-1) | 6,700 |
| Square Drive Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 152, 5 63/64" |
| Weight (Without Socket) (kg/lb) | 0.83, 1.8 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.42, 14.8 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FLT-6D-1(10)L* |
| Bolt Size (mm) | M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 14~22, 1.4~2.2, 10~16 |
| Free Speed (min-1) | 5,700 |
| Square Drive Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 152, 5 63/64" |
| Weight (Without Socket) (kg/lb) | 0.83, 1.8 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.37, 13.0 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size - PT or NPT 1/4".
» Air Pressure: L* Models: 0.4-0.5 MPa (4.0-5.0 bar); All Other Models: 0.5-0.63 MPa (5.0 to 6.3 bar).
» Performance figures are at 0.63 MPa (6.3 bar) air pressure.
» CD type tools available for use with FFA-2-2 countdown adaptor.
» Air Pressure: L* Models: 0.4-0.5 MPa (4.0-5.0 bar); All Other Models: 0.5-0.63 MPa (5.0 to 6.3 bar).
» Performance figures are at 0.63 MPa (6.3 bar) air pressure.
» CD type tools available for use with FFA-2-2 countdown adaptor.
