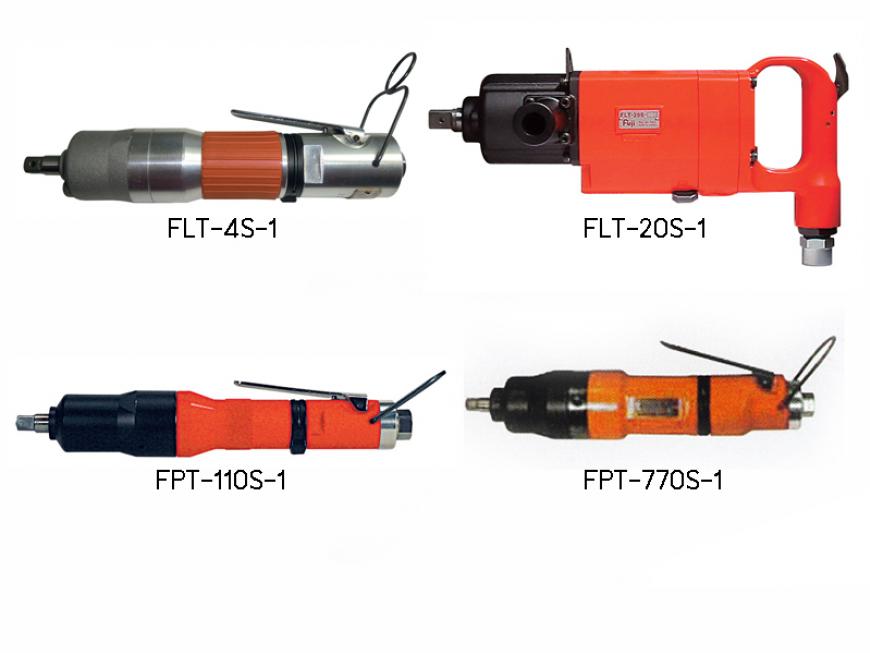

Category >> FUJI PULSE WRENCHES SHUT-OFF TYPE FLT-4S-1
รหัส : FLT-4S-1รุ่น : FLT-4S-1
FUJI PULSE WRENCHES SHUT-OFF TYPE
STRAIGHT MODELS SQUARE DRIVE
Sq. 9.5 mm (3/8") ~ 19 mm (3/4")
| Model | FLT-4S-1 |
| Bolt Size (mm) | M5~M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 6~11, 0.6~1.1, 4.4~8 |
| Free Speed (min-1) | 5,500 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 221, 8 45/64" |
| Weight (Without Socket) (kg/lb) | 0.88, 1.9 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.33, 11.7 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FLT-5S-1 |
| Bolt Size (mm) | M5~M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 11~20, 1.1~2.0, 8~15 |
| Free Speed (min-1) | 6,400 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 221, 8 45/64" |
| Weight (Without Socket) (kg/lb) | 0.88, 1.9 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.36, 12.7 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FLT-5S-1L* |
| Bolt Size (mm) | M6~M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 10~18, 1.0~1.8, 7.3~13.2 |
| Free Speed (min-1) | 5,300 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 222, 8 47/64 " |
| Weight (Without Socket) (kg/lb) | 0.88, 1.9 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.22, 7.7 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FLT-6S-1 |
| Bolt Size (mm) | M6~M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 21~30, 2.1~3.1, 16~22 |
| Free Speed (min-1) | 5,800 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 233.5, 9 3/16" |
| Weight (Without Socket) (kg/lb) | 0.95, 2.1 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.45, 15.9 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FLT-6S-1L* |
| Bolt Size (mm) | M6~M8 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 19~27, 1.9~2.7, 14.5~20.5 |
| Free Speed (min-1) | 5,000 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 234, 9 7/32" |
| Weight (Without Socket) (kg/lb) | 0.94, 2.07 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.28, 9.9 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FLT-20S-1 |
| Bolt Size (mm) | M18~M20 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 200~400, 20.4~40.8, 147.5~295 |
| Free Speed (min-1) | 2,500 |
| Square Drive Size (mm/in) | 19.0, 3/4" |
| Overall Length (Without Socket) (mm/in) | 405, 15 3/32" |
| Weight (Without Socket) (kg/lb) | 8.80, 19.4 |
| Air Consumption (At Load) (m3/min, ft3/min) | 1.3, 45.8 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model | FPT-110S-1 |
| Bolt Size (mm) | M4~M5 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 4~7, 0.4~0.7, 3.0~5.2 |
| Free Speed (min-1) | 4,500 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 235.5, 9 5/16" |
| Weight (Without Socket) (kg/lb) | 0.85, 1.9 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.20, 7.1 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FPT-330S-1 |
| Bolt Size (mm) | M5~M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 6~10, 0.6~1.0, 4.4~7.4 |
| Free Speed (min-1) | 4,400 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 249, 9 13/16" |
| Weight (Without Socket) (kg/lb) | 1.1, 2.4 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.35, 12.3 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FPT-770S-1 |
| Bolt Size (mm) | M8~M10 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 30~45, 3.1~4.6, 22.1~33.2 |
| Free Speed (min-1) | 5,500 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 273.5, 10 49/64" |
| Weight (Without Socket) (kg/lb) | 1.6, 3.5 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.45, 15.9 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size - FLT-20S-1: PT or NPT 1/2"; All Other Models: PT or NPT 1/4".
» Air Pressure: L* Models: 0.4-0.5 MPa (4.0-5.0 bar); All Other Models: 0.5-0.63 MPa (5.0 to 6.3 bar).
