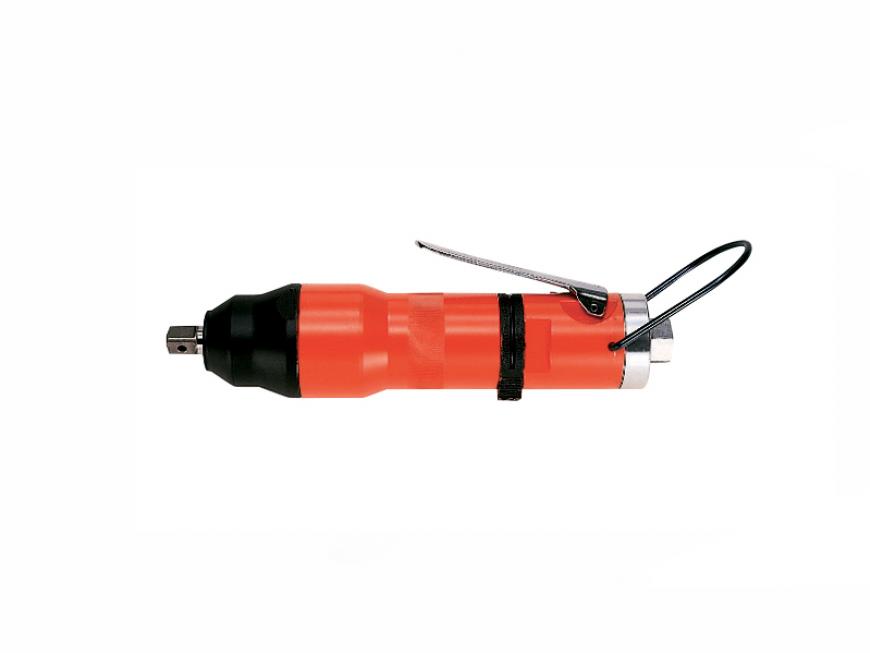

Category >> FUJI IMPACT WRENCHES STRAIGHT MODELS FW-44SA-1
รหัส : FW-44SA-1รุ่น : FW-44SA-1
FUJI IMPACT WRENCHES STRAIGHT MODELS
Sq. 9.5 mm (3/8")
| Model | •FW-44SA-1 |
| Bolt Size (mm) | M5 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 8~16, 0.8~1.6, 5.9~11.8 |
| Maximum Torque (N.m) | 20 |
| Free Speed (min-1) | 5,700 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 207, 8 5/32" |
| Weight (Without Socket) (kg/lb) | 0.66, 1.4 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.35, 12.4 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | •FW-44SA-1 |
| Bolt Size (mm) | M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 14~26, 1.4~2.7, 10.3~19.2 |
| Maximum Torque (N.m) | 32 |
| Free Speed (min-1) | 5,000 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 212, 8 11/32" |
| Weight (Without Socket) (kg/lb) | 0.78, 1.7 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.37, 13.1 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
» Air Inlet Thread Size - PT or NPT 1/4".
» Marked • are oil Bath Types.
» All Models are Double Clutch Types.
» Marked • are oil Bath Types.
» All Models are Double Clutch Types.
