Category >> FUJI IMPACT WRENCHES SMALL SIZE STRAIGHT MODELS FW-6SX-5
รหัส : FW-6SX-5รุ่น : FW-6SX-5

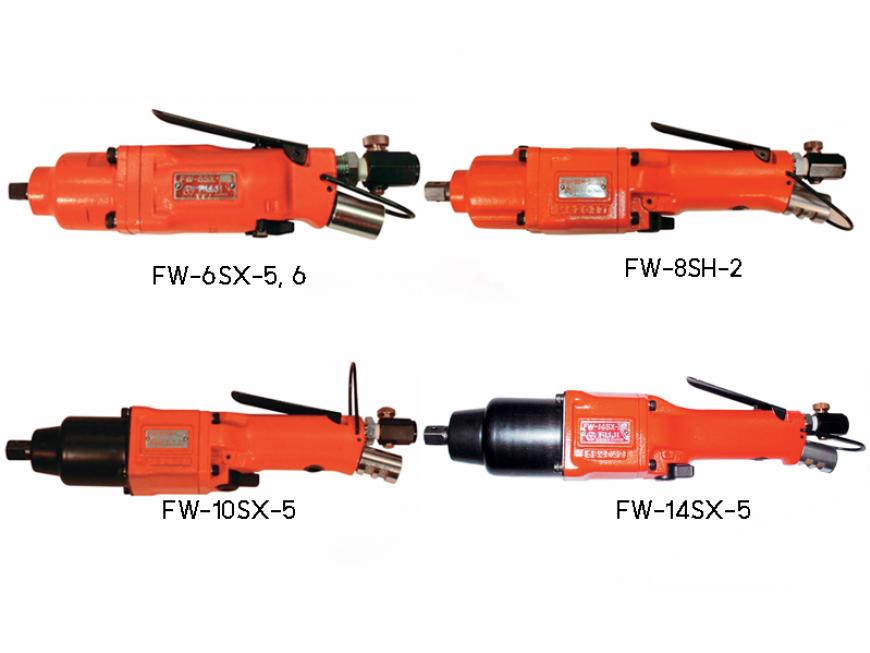

FUJI IMPACT WRENCHES SMALL SIZE STRAIGHT MODELS
Sp. 9.5 mm (3/8") ~ 12.7 mm (1/2")
| Model | FW-6SX-5 |
| Bolt Size (mm) | M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 11~23, 1.1~2.3, 8.1~17.0 |
| Maximum Torque (N.m) | 30 |
| Free Speed (min-1) | 10,000 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 223, 8 25/32" |
| Weight (Without Socket) (kg/lb) | 1.10, 2.4 |
| Air Consumption (m3/min, ft3/min) | 0.30, 10.6 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | •FW-6SX-6 |
| Bolt Size (mm) | M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 10~18, 1.0~1.8, 7.4~13.3 |
| Maximum Torque (N.m) | 25 |
| Free Speed (min-1) | 10,000 |
| Square Drive Size (mm/in) | 9.5, 3/8" |
| Overall Length (Without Socket) (mm/in) | 223, 8 25/32" |
| Weight (Without Socket) (kg/lb) | 1.10, 2.4 |
| Air Consumption (m3/min, ft3/min) | 0.30, 10.6 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | •FW-8SH-2 |
| Bolt Size (mm) | M10 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 35~67, 3.6~6.8, 25.8~49.4 |
| Maximum Torque (N.m) | 93 |
| Free Speed (min-1) | 8,000 |
| Square Drive Size (mm/in) | 12.7, 1/2" |
| Overall Length (Without Socket) (mm/in) | 306, 12 3/64" |
| Weight (Without Socket) (kg/lb) | 1.70, 3.7 |
| Air Consumption (m3/min, ft3/min) | 0.40, 14.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | •FW-10SX-5 |
| Bolt Size (mm) | M10 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 50~100, 5.1~10.2, 36.9~73.8 |
| Maximum Torque (N.m) | 150 |
| Free Speed (min-1) | 8,000 |
| Square Drive Size (mm/in) | 12.7, 1/2" |
| Overall Length (Without Socket) (mm/in) | 317, 12 32/64" |
| Weight (Without Socket) (kg/lb) | 2.20, 4.8 |
| Air Consumption (m3/min, ft3/min) | 0.40, 14.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | •FW-14SX-5 |
| Bolt Size (mm) | M14 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 100~150, 10.2~15.3, 73.8~110.6 |
| Maximum Torque (N.m) | 190 |
| Free Speed (min-1) | 6,500 |
| Square Drive Size (mm/in) | 12.7, 1/2" |
| Overall Length (Without Socket) (mm/in) | 356, 14 1/64" |
| Weight (Without Socket) (kg/lb) | 3.00, 6.6 |
| Air Consumption (m3/min, ft3/min) | 0.50, 17.7 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size - PT or NPT 1/4".
» Marked • are Oil Bath Types.
» All Models are Double Clutch Types.
» Marked • are Oil Bath Types.
» All Models are Double Clutch Types.
