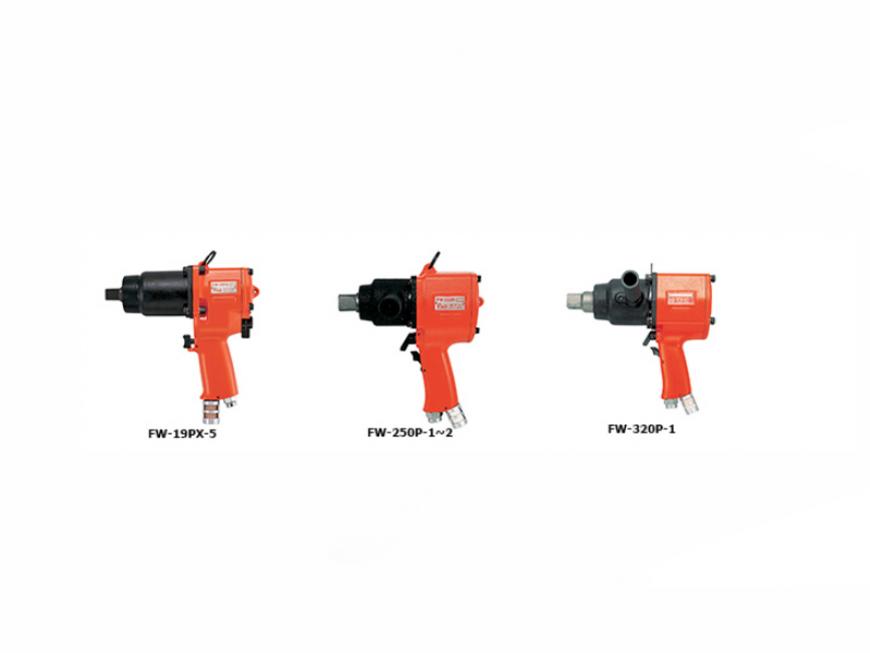

Category >> FUJI STRAIGHT MODELS MEDIUM SIZE STRAIGHT MODELS FW-19PX-5
รหัส : FW-19PX-5รุ่น : FW-19PX-5
FUJI STRAIGHT MODELS MEDIUM SIZE STRAIGHT MODELS
Sq. 19 mm (3/4") ~ 25.4 mm (1")
| Model | •FW-19PX-5 |
| Bolt Size (mm) | M18 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 235~450, 24.0~45.9, 173.3~331.9 |
| Maximum Torque (N.m) | 560 |
| Free Speed (min-1) | 5,000 |
| Square Drive Size (mm/in) | 19.0, 3/4" |
| Overall Length (Without Socket) (mm/in) | 239, 9 13/32" |
| Weight (Without Socket) (kg/lb) | 4.4, 9.7 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.6, 21.2 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | •FW-250P-1 |
| Bolt Size (mm) | M24 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 380~1,040, 38.8~106.1, 280.3~767.0 |
| Maximum Torque (N.m) | 1,200 |
| Free Speed (min-1) | 5,000 |
| Square Drive Size (mm/in) | 25.4, 1" |
| Overall Length (Without Socket) (mm/in) | 228, 8 31/32" |
| Weight (Without Socket) (kg/lb) | 5.3, 11.7 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.7, 24.7 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model | •FW-250P-2 |
| Bolt Size (mm) | M24 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 380~1,040, 38.8~106.1, 280.3~767.0 |
| Maximum Torque (N.m) | 1,200 |
| Free Speed (min-1) | 5,000 |
| Square Drive Size (mm/in) | 19.0, 3/4" |
| Overall Length (Without Socket) (mm/in) | 228, 8 31/32" |
| Weight (Without Socket) (kg/lb) | 5.3, 11.7 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.7, 24.7 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model | •FW-320P-1 |
| Bolt Size (mm) | M30~M33 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 600~1,800, 61.2~183.6, 442.5~1,327.5 |
| Maximum Torque (N.m) | 2,300 |
| Free Speed (min-1) | 4,800 |
| Square Drive Size (mm/in) | 25.4, 1" |
| Overall Length (Without Socket) (mm/in) | 268, 10 36/64" |
| Weight (Without Socket) (kg/lb) | 8.0, 17.6 |
| Air Consumption (At Load) (m3/min, ft3/min) | 1.0, 35.3 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
» Air Inlet Thread Size - FW-19PX-5: PT or NPT 1/4"; All Other Models: PT or NPT 3/8".
» FW-19PX-5 is Single Clutch Types; All Other Models are 2-Jaw Clutch Types.
» Marked • are Long Anvil Types.
» FW-19PX-5 is Single Clutch Types; All Other Models are 2-Jaw Clutch Types.
» Marked • are Long Anvil Types.
