Category >> FUJI STRAIGHT MODELS MEDIUM SIZE STRAIGHT MODELS FW-19Z-5

รหัส : FW-19Z-5
รุ่น : FW-19Z-5

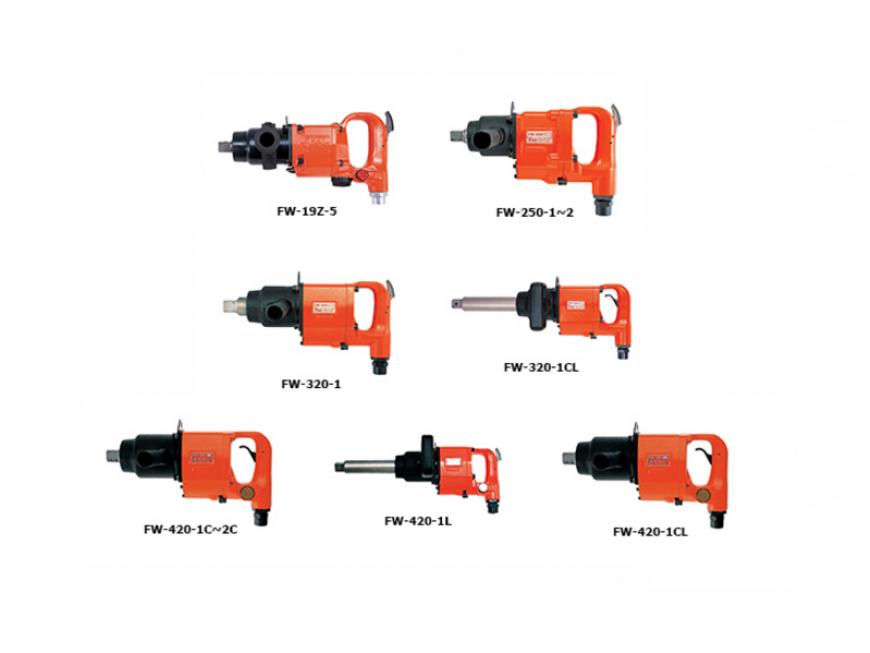

FUJI STRAIGHT MODELS MEDIUM SIZE STRAIGHT MODELS

Sq. 19 mm (3/4") ~ 25.4 mm (1") ~ 31.8 mm (1 1/4")

Model	FW-19Z-5
Bolt Size (mm)	18
Recommended Torque Range (N.m/ kgf.m/ ft.lb)	235~450 , 24.0~45.9 , 174~333
Maximum Torque (N.m)	560
Free Speed (min-1)	5,000
Square Drive Size (mm/in)	19.0, 3/4"
Overall Length (Without Socket) (mm/in)	322.0, 12 43/64"
Weight (Without Socket) (kg/lb)	5.20, 0.60
Air Consumption (At Load) (m3/min, ft3/min)	0.6, 21.2
Air Hose Size (mm/in)	0.5, 3/8"


Model	•FW-19Z-5
Bolt Size (mm)	18
Recommended Torque Range (N.m/ kgf.m/ ft.lb)	235~450 , 24.0~45.9 , 174~333
Maximum Torque (N.m)	560
Free Speed (min-1)	5,000
Square Drive Size (mm/in)	19.0, 3/4"
Overall Length (Without Socket) (mm/in)	322.0, 12 43/64"
Weight (Without Socket) (kg/lb)	5.20, 0.60
Air Consumption (At Load) (m3/min, ft3/min)	0.6, 21.2
Air Hose Size (mm/in)	9.5, 3/8"


Model	FW-250-1
Bolt Size (mm)	24
Recommended Torque Range (N.m/ kgf.m/ ft.lb)	380~1,040 , 38.8~106.1 , 281~720
Maximum Torque (N.m)	1,200
Free Speed (min-1)	5,000
Square Drive Size (mm/in)	25.4, 1"
Overall Length (Without Socket) (mm/in)	302.0, 11 57/64"
Weight (Without Socket) (kg/lb)	6.00, 0.70
Air Consumption (At Load) (m3/min, ft3/min)	0.7, 24.7
Air Hose Size (mm/in)	12.7, 1/2"


Model	FW-250-1C
Bolt Size (mm)	24
Recommended Torque Range (N.m/ kgf.m/ ft.lb)	380~1,040 , 38.8~106.1 , 281~720
Maximum Torque (N.m)	1,200
Free Speed (min-1)	5,000
Square Drive Size (mm/in)	25.4, 1"
Overall Length (Without Socket) (mm/in)	302.0, 11 57/64"
Weight (Without Socket) (kg/lb)	6.00, 0.70
Air Consumption (At Load) (m3/min, ft3/min)	0.7, 24.7
Air Hose Size (mm/in)	12.7, 1/2"


Model	FW-250-2
Bolt Size (mm)	24
Recommended Torque Range (N.m/ kgf.m/ ft.lb)	380~1,040 , 38.8~106.1 , 281~720
Maximum Torque (N.m)	1,200
Free Speed (min-1)	5,000
Square Drive Size (mm/in)	19.0, 3/4"
Overall Length (Without Socket) (mm/in)	302.0, 11 57/64"
Weight (Without Socket) (kg/lb)	6.00, 0.70
Air Consumption (At Load) (m3/min, ft3/min)	0.7, 24.7
Air Hose Size (mm/in)	12.7, 1/2"


Model	FW-250-2C
Bolt Size (mm)	24
Recommended Torque Range (N.m/ kgf.m/ ft.lb)	380~1,040 , 38.8~106.1 , 281~720
Maximum Torque (N.m)	1,200
Free Speed (min-1)	5,000
Square Drive Size (mm/in)	19.0, 3/4"
Overall Length (Without Socket) (mm/in)	302.0, 11 57/64"
Weight (Without Socket) (kg/lb)	6.00, 0.70
Air Consumption (At Load) (m3/min, ft3/min)	0.7, 24.7
Air Hose Size (mm/in)	12.7, 1/2"


Model	FW-320-1
Bolt Size (mm)	30~33
Recommended Torque Range (N.m/ kgf.m/ ft.lb)	600~1,800 , 61.2~183.6, 444~1,333
Maximum Torque (N.m)	2,300
Free Speed (min-1)	4,800
Square Drive Size (mm/in)	25.4, 1"
Overall Length (Without Socket) (mm/in)	353.0, 13 29/32"
Weight (Without Socket) (kg/lb)	8.70, 1.00
Air Consumption (At Load) (m3/min, ft3/min)	1.0, 35.3
Air Hose Size (mm/in)	12.7, 1/2"


Model	FW-320-1C
Bolt Size (mm)	30~33
Recommended Torque Range (N.m/ kgf.m/ ft.lb)	600~1,800 , 61.2~183.6, 444~1,333
Maximum Torque (N.m)	2,300
Free Speed (min-1)	4,800
Square Drive Size (mm/in)	25.4, 1"
Overall Length (Without Socket) (mm/in)	353.0, 13 29/32"
Weight (Without Socket) (kg/lb)	8.70, 1.00
Air Consumption (At Load) (m3/min, ft3/min)	1.0, 35.3
Air Hose Size (mm/in)	12.7, 1/2"


Model	FW-320-1L
Bolt Size (mm)	30~33
Recommended Torque Range (N.m/ kgf.m/ ft.lb)	600~1,800 , 61.2~183.6, 444~1,333
Maximum Torque (N.m)	2,300
Free Speed (min-1)	4,800
Square Drive Size (mm/in)	25.4, 1"
Overall Length (Without Socket) (mm/in)	484.0, 19 1/16"
Weight (Without Socket) (kg/lb)	10.00, 1.00
Air Consumption (At Load) (m3/min, ft3/min)	1.0, 35.3
Air Hose Size (mm/in)	12.7, 1/2"


Model	FW-320-1CL
Bolt Size (mm)	30~33
Recommended Torque Range (N.m/ kgf.m/ ft.lb)	600~1,800 , 61.2~183.6, 444~1,333
Maximum Torque (N.m)	2,300
Free Speed (min-1)	4,800
Square Drive Size (mm/in)	25.4, 1"
Overall Length (Without Socket) (mm/in)	484.0, 19 1/16"
Weight (Without Socket) (kg/lb)	10.00, 1.00
Air Consumption (At Load) (m3/min, ft3/min)	1.0, 35.3
Air Hose Size (mm/in)	12.7, 1/2"


Model	•FW-420-1
Bolt Size (mm)	36~42
Recommended Torque Range (N.m/ kgf.m/ ft.lb)	900~2,500, 91.8~255.0, 666~1,852
Maximum Torque (N.m)	2,800
Free Speed (min-1)	4,500
Square Drive Size (mm/in)	25.4, 1"
Overall Length (Without Socket) (mm/in)	349.0, 13 3/7"
Weight (Without Socket) (kg/lb)	10.80, 1.20
Air Consumption (At Load) (m3/min, ft3/min)	1.2, 42.4
Air Hose Size (mm/in)	19.0, 3/4 "


Model	•FW-420-1C
Bolt Size (mm)	36~42
Recommended Torque Range (N.m/ kgf.m/ ft.lb)	900~2,500, 91.8~255.0, 666~1,852
Maximum Torque (N.m)	2,800
Free Speed (min-1)	4,500
Square Drive Size (mm/in)	25.4, 1"
Overall Length (Without Socket) (mm/in)	349.0, 13 3/7"
Weight (Without Socket) (kg/lb)	10.80, 1.20
Air Consumption (At Load) (m3/min, ft3/min)	1.2, 42.4
Air Hose Size (mm/in)	19.0, 3/4 "


Model	•FW-420-1L
Bolt Size (mm)	36~42
Recommended Torque Range (N.m/ kgf.m/ ft.lb)	900~2,500, 91.8~255.0, 666~1,852
Maximum Torque (N.m)	2,800
Free Speed (min-1)	4,500
Square Drive Size (mm/in)	25.4, 1"
Overall Length (Without Socket) (mm/in)	501.0, 19 3/4"
Weight (Without Socket) (kg/lb)	12.50, 1.20
Air Consumption (At Load) (m3/min, ft3/min)	1.2, 42.4
Air Hose Size (mm/in)	19.0, 3/4 "


Model	•FW-420-1CL
Bolt Size (mm)	36~42
Recommended Torque Range (N.m/ kgf.m/ ft.lb)	900~2,500, 91.8~255.0, 666~1,852
Maximum Torque (N.m)	2,800
Free Speed (min-1)	4,500
Square Drive Size (mm/in)	25.4, 1"
Overall Length (Without Socket) (mm/in)	501.0, 19 3/4"
Weight (Without Socket) (kg/lb)	12.50, 1.20
Air Consumption (At Load) (m3/min, ft3/min)	1.2, 42.4
Air Hose Size (mm/in)	19.0, 3/4 "


Model	•FW-420-2
Bolt Size (mm)	36~42
Recommended Torque Range (N.m/ kgf.m/ ft.lb)	900~2,500, 91.8~255.0, 666~1,852
Maximum Torque (N.m)	2,800
Free Speed (min-1)	4,500
Square Drive Size (mm/in)	31.8, 1 1/4"
Overall Length (Without Socket) (mm/in)	351.0, 13.81887"
Weight (Without Socket) (kg/lb)	10.80, 1.20
Air Consumption (At Load) (m3/min, ft3/min)	1.2, 42.4
Air Hose Size (mm/in)	19.0, 3/4 "


Model	•FW-420-2C
Bolt Size (mm)	36~42
Recommended Torque Range (N.m/ kgf.m/ ft.lb)	900~2,500, 91.8~255.0, 666~1,852
Maximum Torque (N.m)	2,800
Free Speed (min-1)	4,500
Square Drive Size (mm/in)	31.8, 1 1/4"
Overall Length (Without Socket) (mm/in)	351.0, 13.81887"
Weight (Without Socket) (kg/lb)	10.80, 1.20
Air Consumption (At Load) (m3/min, ft3/min)	1.2, 42.4
Air Hose Size (mm/in)	19.0, 3/4 "

» Air Inlet Thread Size - FW-19Z-5/5C: PT or NPT 3/8"; All Other Models: PT or NPT 1/2".
» FW-19Z-5 is Single Clutch Type; All Other Models are 2-Jaw Clutch Types.
» Marked • are Long Anvil Types.
» Models with C are Inside Lever Types.
