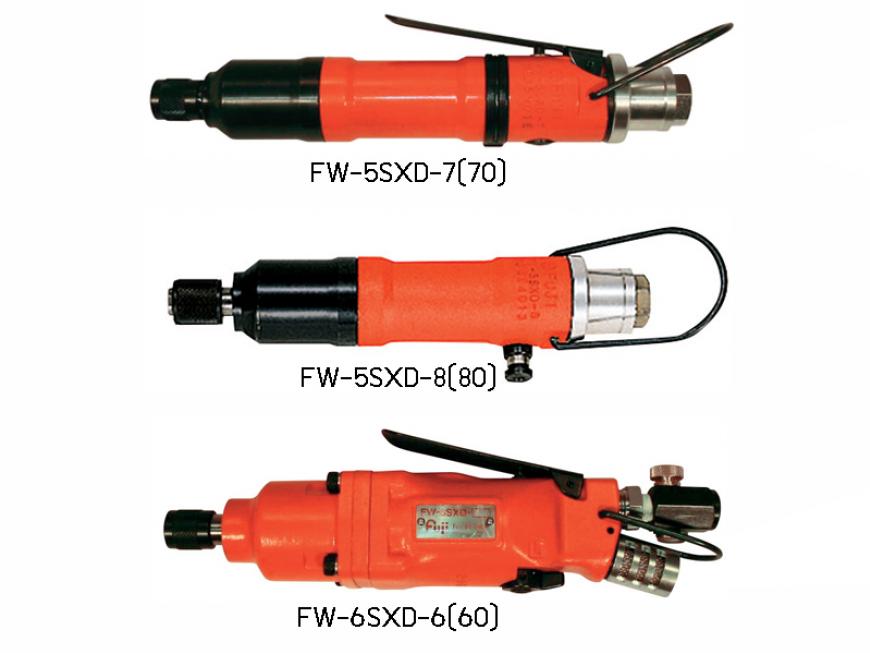

Category >> FUJI SCREWDRIVERS FW-5SXD-7
รหัส : FW-5SXD-7รุ่น : FW-5SXD-7
FUJI SCREWDRIVERS
IMPACT CLUTCH TYPE
Straight Models Hex. 6.35 mm (1/4")
| Model | FW-5SXD-7 |
| Bolt Size (mm) | M5 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 6~11, 0.6~1.1, 4.4~8.1 |
| Maximum Torque (N.m) | 20 |
| Free Speed (min-1) | 12,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 223, 8 25/32" |
| Weight (Without Socket) (kg/lb) | 0.70, 1.5 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.20, 7.1 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FW-5SXD-70 |
| Bolt Size (mm) | M5 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 6~11, 0.6~1.1, 4.4~8.1 |
| Maximum Torque (N.m) | 20 |
| Free Speed (min-1) | 12,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 223, 8 25/32" |
| Weight (Without Socket) (kg/lb) | 0.70, 1.5 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.20, 7.1 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FW-5SXD-8 |
| Bolt Size (mm) | M5 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 6~11, 0.6~1.1, 4.4~8.1 |
| Maximum Torque (N.m) | 20 |
| Free Speed (min-1) | 12,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 193, 7 19/32" |
| Weight (Without Socket) (kg/lb) | 0.65, 1.4 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.20, 7.1 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FW-5SXD-80 |
| Bolt Size (mm) | M5 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 6~11, 0.6~1.1, 4.4~8.1 |
| Maximum Torque (N.m) | 20 |
| Free Speed (min-1) | 12,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 193, 7 19/32" |
| Weight (Without Socket) (kg/lb) | 0.65, 1.4 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.20, 7.1 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model | FW-6SXD-6 |
| Bolt Size (mm) | M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 10~18, 1.0~1.8, 7.4~13.3 |
| Maximum Torque (N.m) | 25 |
| Free Speed (min-1) | 10,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 235, 9 1/4" |
| Weight (Without Socket) (kg/lb) | 1.10, 2.4 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.30, 10.6 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FW-6SXD-60 |
| Bolt Size (mm) | M6 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 10~18, 1.0~1.8, 7.4~13.3 |
| Maximum Torque (N.m) | 25 |
| Free Speed (min-1) | 10,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 235, 9 1/4" |
| Weight (Without Socket) (kg/lb) | 1.10, 2.4 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.30, 10.6 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size - PT or NPT 1/4".
