Category >> FUJI SCREWDRIVERS FD-4

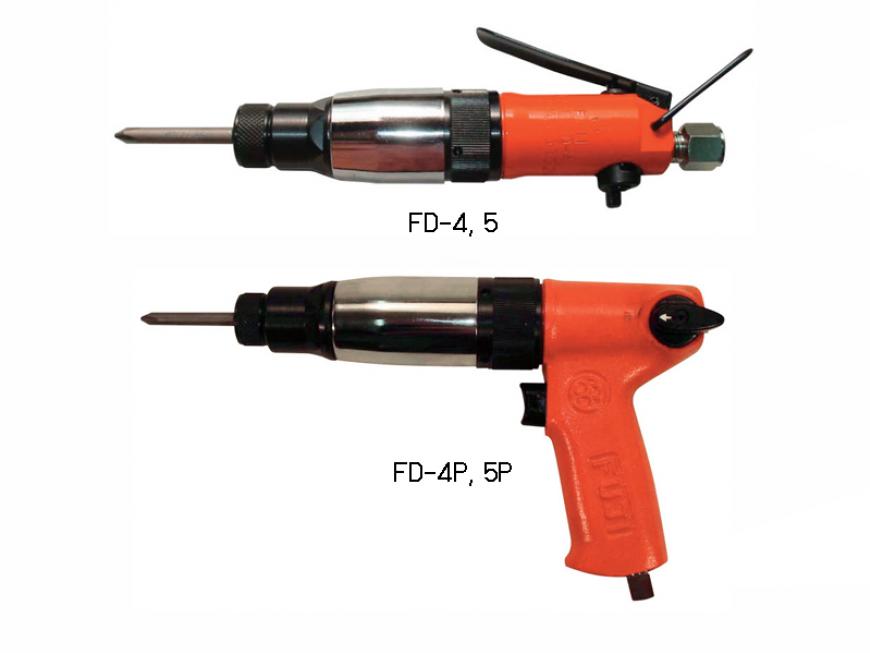

รหัส : FD-4รุ่น : FD-4
FUJI SCREWDRIVERS
SLIP CLUTCH TYPE
Hex. 6.35 mm (1/4")
| Model Straight Models | FD-4 |
| Bolt Size (mm) | M4 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 1~4, 0.1~0.4, 0.7~3.0 |
| Free Speed (min-1) | 2,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 174, 6 27/32" |
| Weight (Without Socket) (kg/lb) | 0.6, 1.3 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.20, 7.1 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model Straight Models | •FD-5 |
| Bolt Size (mm) | M5 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 6~12, 0.6~1.2, 4.4~8.9 |
| Free Speed (min-1) | 1,600 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 233, 9 11/64" |
| Weight (Without Socket) (kg/lb) | 1.0, 2.2 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.30, 10.6 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model Pistol Grip Models | FD-4P |
| Bolt Size (mm) | M4 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 1~4, 0.1~0.4, 0.7~3.0 |
| Free Speed (min-1) | 2,000 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 173, 6 13/16" |
| Weight (Without Socket) (kg/lb) | 0.8, 1.7 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.20, 7.1 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model Pistol Grip Models | •FD-5P |
| Bolt Size (mm) | M4 |
| Recommended Torque Range (N.m/ kgf.m/ ft.lb) | 6~12, 0.6~1.2, 4.4~8.9 |
| Free Speed (min-1) | 1,600 |
| Bit Shank Size (mm/in) | 6.35, 1/4" |
| Overall Length (Without Socket) (mm/in) | 216, 8 1/2" |
| Weight (Without Socket) (kg/lb) | 1.2, 2.2 |
| Air Consumption (At Load) (m3/min, ft3/min) | 0.30, 10.6 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
» Air Inlet Thread Size - PT or NPT 1/4".
» Marked • are Oil Bath Types.
» Marked • are Oil Bath Types.
