Category >> FUJI DIE GRINDERS FG-13-1
รหัส : FG-13-1รุ่น : FG-13-1

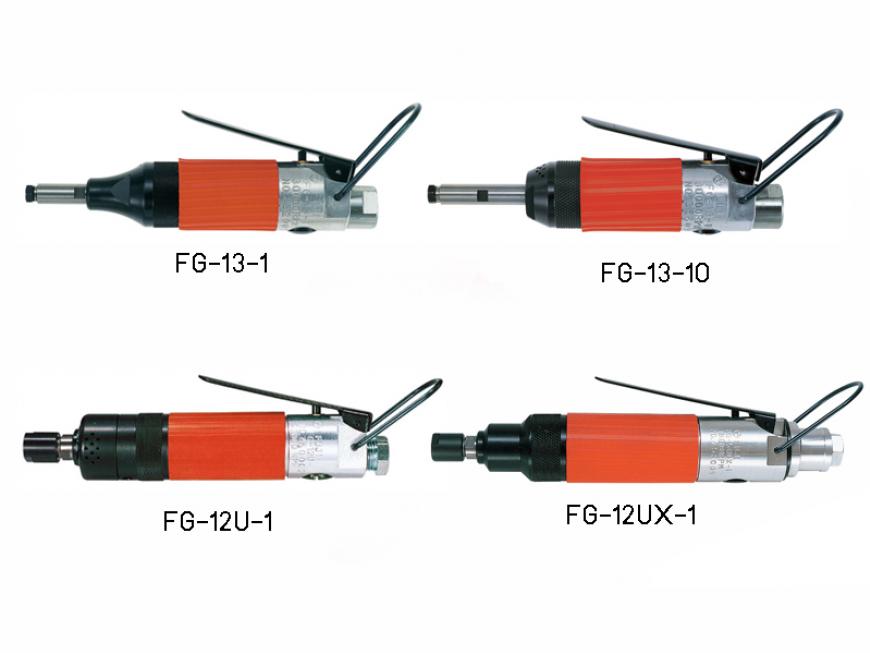

FUJI DIE GRINDERS
LEVER HANDLE MODELS
| Model Front Exhaust Type | FG-13-1 |
| Collet Size (mm/in) | 3, 1/8 " |
| Maximum Diameter (Mounted Wheel) (mm/in) | 13, 1/2" |
| Maximum Diameter (Burr Head) (mm/in) | 10, 3/8" |
| Free Speed (min-1) | 30,000 |
| Power (W/ hp) | 150, 0.21 |
| Overall Length (mm/in) | 158, 6 7/32" |
| Weight (kg/lb) | 0.3, 0.3 |
| Maximum Air Consumption (m3/min, ft3/min) | 2.5, 8.8 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model Front Exhaust Type | FG-13-10 |
| Collet Size (mm/in) | 3, 1/8 " |
| Maximum Diameter (Mounted Wheel) (mm/in) | 13, 1/2" |
| Maximum Diameter (Burr Head) (mm/in) | 10, 3/8" |
| Free Speed (min-1) | 30,000 |
| Power (W/ hp) | 150, 0.21 |
| Overall Length (mm/in) | 158, 6 7/32" |
| Weight (kg/lb) | 0.4, 0.9 |
| Maximum Air Consumption (m3/min, ft3/min) | 2.5, 8.8 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model Rear Exhaust Type | FG-13X-1 |
| Collet Size (mm/in) | 3, 1/8 " |
| Maximum Diameter (Mounted Wheel) (mm/in) | 13, 1/2" |
| Maximum Diameter (Burr Head) (mm/in) | 10, 3/8" |
| Free Speed (min-1) | 30,000 |
| Power (W/ hp) | 150, 0.17 |
| Overall Length (mm/in) | 183, 7 13/64" |
| Weight (kg/lb) | 0.4, 0.9 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.21, 7.4 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model Rear Exhaust Type | FG-13X-10 |
| Collet Size (mm/in) | 3, 1/8 " |
| Maximum Diameter (Mounted Wheel) (mm/in) | 13, 1/2" |
| Maximum Diameter (Burr Head) (mm/in) | 10, 3/8" |
| Free Speed (min-1) | 30,000 |
| Power (W/ hp) | 150, 0.17 |
| Overall Length (mm/in) | 183, 7 13/64" |
| Weight (kg/lb) | 0.4, 0.9 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.21, 7.4 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model Front Exhaust | FG-12U-1 |
| Collet Size (mm/in) | 3.6, 1/8",1/4" |
| Maximum Diameter (Mounted Wheel) (mm/in) | 13, 1/2" |
| Maximum Diameter (Burr Head) (mm/in) | 8, 5/16" |
| Free Speed (min-1) | 43,000 |
| Power (W/ hp) | 130, 0.18 |
| Overall Length (mm/in) | 188, 7 13/32" |
| Weight (kg/lb) | 0.6, 1.3 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.30, 10.6 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model Front Exhaust | FG-25D-1 |
| Collet Size (mm/in) | 3.6, 1/8",1/4" |
| Maximum Diameter (Mounted Wheel) (mm/in) | 25, 1" |
| Maximum Diameter (Burr Head) (mm/in) | 13, 1/2" |
| Free Speed (min-1) | 24,000 |
| Power (W/ hp) | 250, 0.34 |
| Overall Length (mm/in) | 198, 7 51/64" |
| Weight (kg/lb) | 0.7, 1.8 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.40, 14.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Front Exhaust | FG-50D-1 |
| Collet Size (mm/in) | 3.6, 1/8",1/4" |
| Maximum Diameter (Mounted Wheel) (mm/in) | 32, 1 1/4" |
| Maximum Diameter (Burr Head) (mm/in) | 22, 7/8" |
| Free Speed (min-1) | 18,000 |
| Power (W/ hp) | 340, 0.46 |
| Overall Length (mm/in) | 210, 7 17/64" |
| Weight (kg/lb) | 0.9, 2.0 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.45, 15.9 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Rear Exhaust | FG-12UX-1 |
| Collet Size (mm/in) | 3.6, 1/8",1/4" |
| Maximum Diameter (Mounted Wheel) (mm/in) | 13, 1/2" |
| Maximum Diameter (Burr Head) (mm/in) | 8, 5/16" |
| Free Speed (min-1) | 43,000 |
| Power (W/ hp) | 130, 0.18 |
| Overall Length (mm/in) | 213, 8 25/64" |
| Weight (kg/lb) | 0.7, 1.5 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.30, 10.6 |
| Air Hose Size (mm/in) | 6.3, 1/4" |
| Model Rear Exhaust | FG-25DX-1 |
| Collet Size (mm/in) | 3.6, 1/8",1/4" |
| Maximum Diameter (Mounted Wheel) (mm/in) | 25, 1" |
| Maximum Diameter (Burr Head) (mm/in) | 13, 1/2" |
| Free Speed (min-1) | 24,000 |
| Power (W/ hp) | 250, 0.34 |
| Overall Length (mm/in) | 230, 9 1/16" |
| Weight (kg/lb) | 0.8, 1.8 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.40, 14.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Rear Exhaust | FG-50DX-1 |
| Collet Size (mm/in) | 3.6, 1/8",1/4" |
| Maximum Diameter (Mounted Wheel) (mm/in) | 32, 1 1/4" |
| Maximum Diameter (Burr Head) (mm/in) | 22, 7/8" |
| Free Speed (min-1) | 18,000 |
| Power (W/ hp) | 340, 0.46 |
| Overall Length (mm/in) | 243, 9 9/16" |
| Weight (kg/lb) | 0.9, 2.0 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.45, 15.9 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size - PT or NPT 1/4".
