Category >> FUJI STRAIGHT GRINDERS LOCKING LEVER HANDLE MODELS FG-3H-1F
รหัส : FG-3H-1Fรุ่น : FG-3H-1F

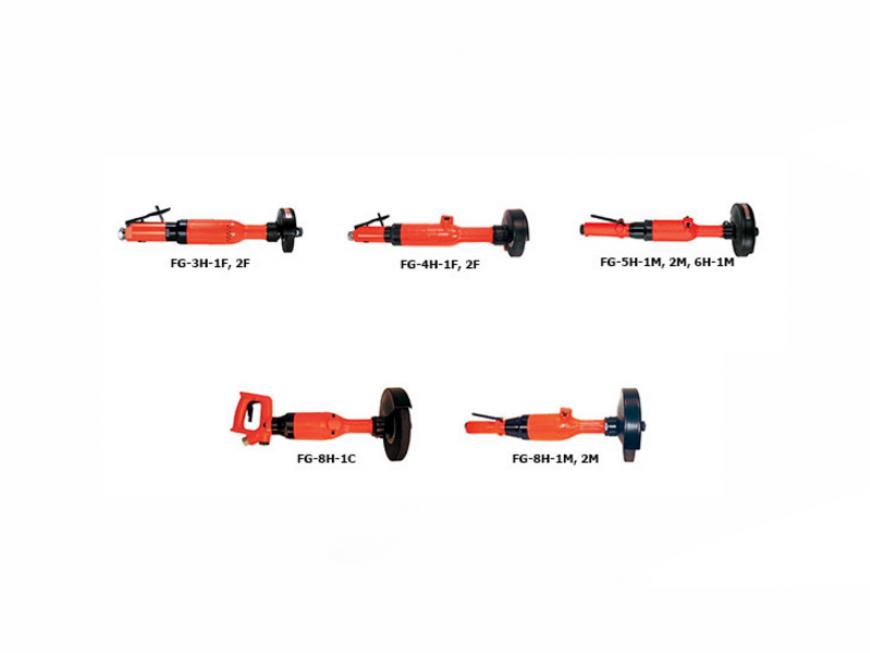

FUJI STRAIGHT GRINDERS LOCKING LEVER HANDLE MODELS
| Model | FG-3H-1F |
| Maximum Diameter(Grinding Wheel) (mm/in) | 65 x 13 x 9.53, 2 1/2" x 1/2" x 3/8" |
| Free Speed (min-1) | 14,600 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 480, 0.64 |
| Overall Length (mm/in) | 342, 13 15/32" |
| Weight (kg/lb) | 1.7, 3.7 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.55, 19.4 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FG-3H-2F |
| Maximum Diameter(Grinding Wheel) (mm/in) | 75 x 13 x 9.53, 3" x 1/2" x 3/8" |
| Free Speed (min-1) | 12,700 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 480, 0.64 |
| Overall Length (mm/in) | 342, 13 15/32" |
| Weight (kg/lb) | 1.7, 3.7 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.55, 19.4 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FG-4H-1F |
| Maximum Diameter(Grinding Wheel) (mm/in) | 100 x 19 x 9.53, 4" x 3/4" x 3/8" |
| Free Speed (min-1) | 9,500 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 700, 0.94 |
| Overall Length (mm/in) | 408, 16 1/16" |
| Weight (kg/lb) | 2.3, 5.1 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.80, 28.2 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model | FG-4H-2F |
| Maximum Diameter(Grinding Wheel) (mm/in) | 100 x 19 x 12.7, 4" x 3/4" x 1/2" |
| Free Speed (min-1) | 9,500 |
| Spindle Thread Size (in) | W1/2-12 |
| Power (W/ hp) | 700, 0.94 |
| Overall Length (mm/in) | 414, 16 19/64" |
| Weight (kg/lb) | 2.3, 5.1 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.80, 28.2 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model | FG-5H-1M |
| Maximum Diameter(Grinding Wheel) (mm/in) | 125 x 19 x 12.7, 5" x 3/4" x 1/2" |
| Free Speed (min-1) | 7,600 |
| Spindle Thread Size (in) | W1/2-12 |
| Power (W/ hp) | 960, 1.28 |
| Overall Length (mm/in) | 506, 19 59/64" |
| Weight (kg/lb) | 2.5, 5.5 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.00, 35.3 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model | FG-5H-2M |
| Maximum Diameter(Grinding Wheel) (mm/in) | 125 x 19 x 15.8, 5" x 3/4" x 5/8" |
| Free Speed (min-1) | 7,600 |
| Spindle Thread Size (in) | 5/8-11UNF |
| Power (W/ hp) | 960, 1.28 |
| Overall Length (mm/in) | 511, 20 7/64" |
| Weight (kg/lb) | 2.5, 5.5 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.00, 35.3 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model | FG-6H-1M |
| Maximum Diameter(Grinding Wheel) (mm/in) | 150 x 25 x 15.8, 6" x 1" x 5/8" |
| Free Speed (min-1) | 6,300 |
| Spindle Thread Size (in) | 5/8-11UNF |
| Power (W/ hp) | 1,000, 1.38 |
| Overall Length (mm/in) | 531, 20 29/32" |
| Weight (kg/lb) | 3.4, 7.5 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.20, 42.4 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model | FG-8H-1M |
| Maximum Diameter(Grinding Wheel) (mm/in) | 205 x 25 x 15.8, 8" x 1" x 5/8" |
| Free Speed (min-1) | 4,600 |
| Spindle Thread Size (in) | 5/8-11UNF |
| Power (W/ hp) | 1,470, 1.97 |
| Overall Length (mm/in) | 556, 21 57/64" |
| Weight (kg/lb) | 5.5, 12.1 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.60, 56.5 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model | FG-8H-2M |
| Maximum Diameter(Grinding Wheel) (mm/in) | 180 x 25 x 15.8, 7 "x 1" x 5/8" |
| Free Speed (min-1) | 5,300 |
| Spindle Thread Size (in) | 5/8-11UNF |
| Power (W/ hp) | 1,620, 2.17 |
| Overall Length (mm/in) | 556, 21 57/64" |
| Weight (kg/lb) | 5.4, 11.8 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.80, 63.5 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model Grip Handle Models | FG-8H-1C |
| Maximum Diameter(Grinding Wheel) (mm/in) | 205 x 25 x 15.8, 8" x 1" x 5/8" |
| Free Speed (min-1) | 4,600 |
| Spindle Thread Size (in) | 5/8-11UNF |
| Power (W/ hp) | 1,470, 1.97 |
| Overall Length (mm/in) | 538, 21 3/16" |
| Weight (kg/lb) | 5.6, 12.3 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.60, 56.5 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
» Air Inlet Thread Size - FG-8H-1M//2M~FG-8H-1C: PT or NPT 1/2"; All Other Models PT or NPT 3/8".
