Category >> FUJI EXTENDED GRINDERS FG-50L-1A
รหัส : FG-50L-1Aรุ่น : FG-50L-1A

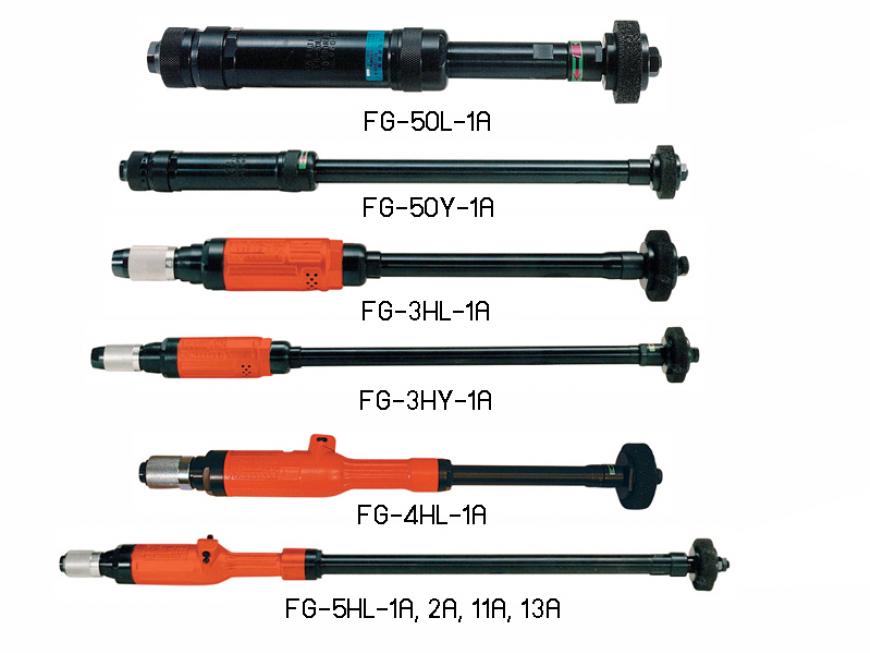

FUJI EXTENDED GRINDERS
ROLL THROTTLE MODELS
For Inner Grinding
| Model | FG-50L-1A |
| Maximum Diameter(Grinding Wheel) (mm/in) | 50 x 13 x 9.53, 2" x 1/2" x 3/8" |
| Free Speed (min-1) | 18,000 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 294, 0.4 |
| Overall Length (mm/in) | 307, 16 3/32" |
| Weight (kg/lb) | 1.3, 2.9 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.43, 15.2 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FG-50Y-1A |
| Maximum Diameter(Grinding Wheel) (mm/in) | 50 x 13 x 9.53, 2" x 1/2" x 3/8" |
| Free Speed (min-1) | 18,000 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 294, 0.4 |
| Overall Length (mm/in) | 523, 20 19/32" |
| Weight (kg/lb) | 1.9, 4.2 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.43, 15.2 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FG-3HL-1A |
| Maximum Diameter(Grinding Wheel) (mm/in) | 65 x 13 x 9.53, 2 1/2" x 1/2" x 3/8" |
| Free Speed (min-1) | 12,000 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 520, 0.7 |
| Overall Length (mm/in) | 522, 20 35/64" |
| Weight (kg/lb) | 1.8, 3.9 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.55, 19.4 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FG-3HY-1A |
| Maximum Diameter(Grinding Wheel) (mm/in) | 65 x 13 x 9.53, 2 1/2" x 1/2" x 3/8" |
| Free Speed (min-1) | 12,000 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 520, 0.7 |
| Overall Length (mm/in) | 702, 27 41/64" |
| Weight (kg/lb) | 2.2, 4.8 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.55, 19.4 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FG-4HL-1A |
| Maximum Diameter(Grinding Wheel) (mm/in) | 75 x 19 x 9.53, 3" x 3/4" x 3/8" |
| Free Speed (min-1) | 12,000 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 690, 0.9 |
| Overall Length (mm/in) | 585, 23 1/32" |
| Weight (kg/lb) | 2.5, 5.5 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.80, 28.2 |
| Air Hose Size (mm/in) | 12.7, 3/8" |
| Model | FG-5HL-1A |
| Maximum Diameter(Grinding Wheel) (mm/in) | 75 x 19 x 12.7, 3" x 3/4" x 3/8" |
| Free Speed (min-1) | 12,000 |
| Spindle Thread Size (in) | W1/2-12 |
| Power (W/ hp) | 960, 1.3 |
| Overall Length (mm/in) | 953, 37 33/64" |
| Weight (kg/lb) | 5.0, 11.0 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.00, 35.3 |
| Air Hose Size (mm/in) | 12.7, 1" |
| Model | FG-5HL-2A |
| Maximum Diameter(Grinding Wheel) (mm/in) | 100 x 16 x 12.7, 4" x 3/4" x 1" |
| Free Speed (min-1) | 9,000 |
| Spindle Thread Size (in) | W1/2-12 |
| Power (W/ hp) | 960, 1.3 |
| Overall Length (mm/in) | 953, 37 33/64" |
| Weight (kg/lb) | 5.0, 11.0 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.00, 35.3 |
| Air Hose Size (mm/in) | 12.7, 1" |
| Model | FG-5HL-11A |
| Maximum Diameter(Grinding Wheel) (mm/in) | 75 x 19 x 9.53, 3" x 3/4" x 3/8" |
| Free Speed (min-1) | 12,000 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 960, 1.3 |
| Overall Length (mm/in) | 599, 23 37/64" |
| Weight (kg/lb) | 3.0, 6.6 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.00, 35.3 |
| Air Hose Size (mm/in) | 12.7, 1" |
| Model | FG-5HL-13A |
| Maximum Diameter(Grinding Wheel) (mm/in) | 100 x 16 x 12.7, 4" x 5/8" x 1" |
| Free Speed (min-1) | 9,000 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 960, 1.3 |
| Overall Length (mm/in) | 599, 23 37/64" |
| Weight (kg/lb) | 3.0, 6.6 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.00, 35.3 |
| Air Hose Size (mm/in) | 12.7, 1" |
» Air Inlet Thread Size - FG-50L-1A, FG-50Y-1A: PT or NPT 1/4"; All Other Models: PT or NPT 3/8".
