Category >> FUJI EXTENDED GRINDERS FG-50L-1BF
รหัส : FG-50L-1BFรุ่น : FG-50L-1BF

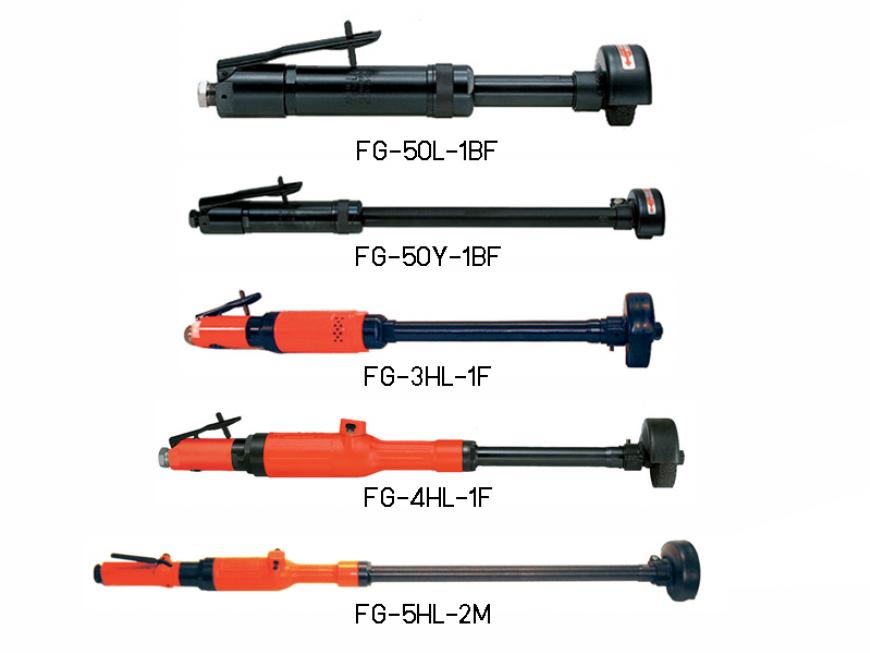

FUJI EXTENDED GRINDERS
LOCKING LEVER HANDLE MODELS
| Model | FG-50L-1BF |
| Maximum Diameter(Grinding Wheel) (mm/in) | 50 x 13 x 9.53, 2" x 1/2" x 3/8" |
| Free Speed (min-1) | 18,000 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 290, 0.39 |
| Overall Length (mm/in) | 316, 127/16" |
| Weight (kg/lb) | 1.4, 3.1 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.43, 15.2 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FG-50Y-1BF |
| Maximum Diameter(Grinding Wheel) (mm/in) | 50 x 13 x 9.53, 2" x 1/2" x 3/8" |
| Free Speed (min-1) | 18,000 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 290, 0.39 |
| Overall Length (mm/in) | 532, 20 15/16" |
| Weight (kg/lb) | 2.0, 4.4 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.43, 15.2 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FG-3HL-1F |
| Maximum Diameter(Grinding Wheel) (mm/in) | 65 x 13 x 9.53, 2 1/2" x 1/2" x 3/8" |
| Free Speed (min-1) | 12,000 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 480, 0.64 |
| Overall Length (mm/in) | 547, 21 17/3" |
| Weight (kg/lb) | 1.9, 4.2 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.55, 19.4 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FG-4HL-1F |
| Maximum Diameter(Grinding Wheel) (mm/in) | 75 x 19 x 9.53, 3" x 3/4" x 3/8" |
| Free Speed (min-1) | 12,000 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 740, 0.99 |
| Overall Length (mm/in) | 615, 24 7/32" |
| Weight (kg/lb) | 2.6, 5.7 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.80, 28.2 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model | FG-5HL-2M |
| Maximum Diameter(Grinding Wheel) (mm/in) | 100 x 19 x 12.7, 4" x 3/4" x 1/2" |
| Free Speed (min-1) | 9,000 |
| Spindle Thread Size (in) | W1/2-12 |
| Power (W/ hp) | 960, 1.28 |
| Overall Length (mm/in) | 1,050, 41 11/32" |
| Weight (kg/lb) | 5.4, 11.9 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.00, 35.3 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
» Air Inlet Thread Size - FG-50L, 50Y Series: PT or NPT 1/4"; FG-3HL, 4HL, 5HL Series: PT or NPT 3/8".
