Category >> FUJI ANGLE GRINDERS - SMALL FA-2C-1
รหัส : FA-2C-1รุ่น : FA-2C-1

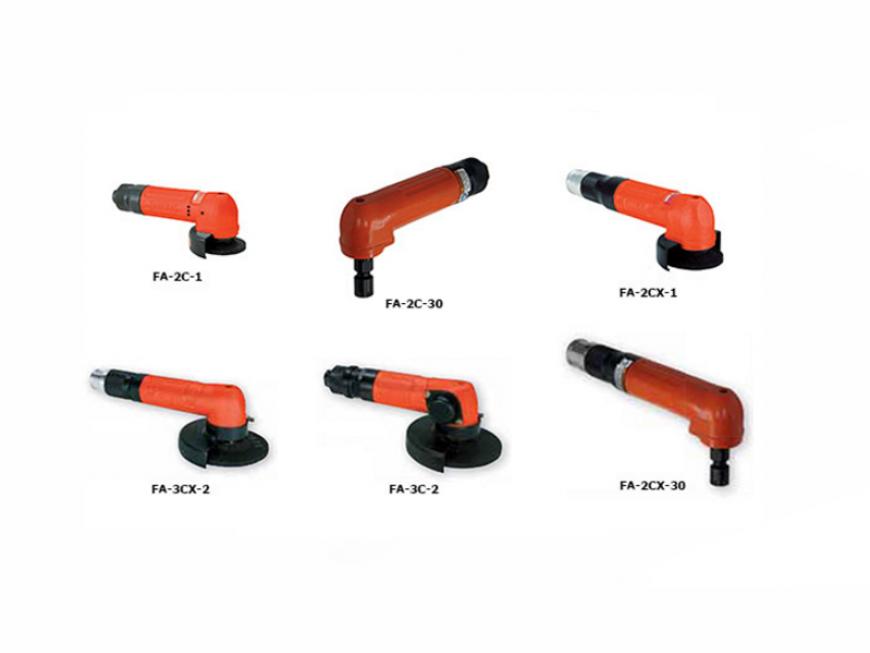

FUJI ANGLE GRINDERS - SMALL
ROLL THROTTLE MODELS
Side Exhaust Type
| Model Side Exhaust Type | FA-2C-1 |
| Maximum Diameter(Mounted Wheel) (mm/in) | 50 x 4 x 9.53, 2" x 5/32" x 3/8" |
| Free Speed (min-1) | 15,000 |
| Spindle Thread Size (in) | 1/4-28UNF |
| Power (W/ hp) | 265, 0.36 |
| Angle Head Height (mm/in) | 48, 1 57/64" |
| Overall Length (mm/in) | 157, 6.18" |
| Weight (kg/lb) | 0.6, 1.3 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.4, 14.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Side Exhaust Type | FA-2C-2 |
| Collet Size (mm/in) | 6, 1/4" |
| Free Speed (min-1) | 15,000 |
| Spindle Thread Size (in) | 3/8-24UNF |
| Power (W/ hp) | 265, 0.36 |
| Angle Head Height (mm/in) | 90, 3 35/64" |
| Overall Length (mm/in) | 157, 6.18" |
| Weight (kg/lb) | 0.6, 1.3 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.4, 14.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Side Exhaust Type | FA-2C- 30 |
| Collet Size (mm/in) | 6, 1/4" |
| Free Speed (min-1) | 15,000 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 265, 0.36 |
| Angle Head Height (mm/in) | 80, 3 5/32" |
| Maximum Air Consumption (m3/min, ft3/min) | 0.4, 14.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Side Exhaust Type | FA-3C-1 |
| Maximum Diameter(Mounted Wheel) (mm/in) | 75 x 4 x 15, 3" x 5/32" x 5/8" |
| Free Speed (min-1) | 15,000 |
| Spindle Thread Size (in) | M8-P1.25(F) |
| Power (W/ hp) | 330, 0.44 |
| Angle Head Height (mm/in) | 64, 2 33/64" |
| Overall Length (mm/in) | 180, 73/32" |
| Weight (kg/lb) | 1.1, 2.4 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.4, 14.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Side Exhaust Type | FA-3C-2 |
| Maximum Diameter(Mounted Wheel) (mm/in) | 100 x 6 x 15, 4" x 1/4" x 5/8" |
| Free Speed (min-1) | 13,500 |
| Spindle Thread Size (in) | M8-P1.25(F) |
| Power (W/ hp) | 330, 0.44 |
| Angle Head Height (mm/in) | 64, 2 33/64" |
| Overall Length (mm/in) | 180, 73/32" |
| Weight (kg/lb) | 1.1, 2.4 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.4, 14.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
Rear Exhaust Type
| Model Rear Exhaust Type | FA-2CX-1 |
| Maximum Diameter(Mounted Wheel) (mm/in) | 50 x 4 x 9.53, 2" x 5/32" x 3/8" |
| Free Speed (min-1) | 15,000 |
| Spindle Thread Size (in) | 1/4-28UNF |
| Power (W/ hp) | 265, 0.36 |
| Angle Head Height (mm/in) | 48, 1 57/64" |
| Overall Length (mm/in) | 197, 7.76" |
| Weight (kg/lb) | 0.7, 1.5 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.4, 14.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Rear Exhaust Type | FA-2CX-2 |
| Free Speed (min-1) | 15,000 |
| Spindle Thread Size (in) | 3/8-24UNF |
| Power (W/ hp) | 265, 0.36 |
| Angle Head Height (mm/in) | 90, 3 35/64" |
| Overall Length (mm/in) | 197, 7.76" |
| Weight (kg/lb) | 0.7, 1.5 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.4, 14.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Rear Exhaust Type | FA-2CX-30 |
| Collet Size (mm/in) | 6, 1/4" |
| Free Speed (min-1) | 15,000 |
| Spindle Thread Size (in) | W3/8-16 |
| Power (W/ hp) | 265, 0.36 |
| Angle Head Height (mm/in) | 80, 3 5/32" |
| Maximum Air Consumption (m3/min, ft3/min) | 0.4, 14.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Rear Exhaust Type | FA-3CX-1 |
| Maximum Diameter(Mounted Wheel) (mm/in) | 75 x 4 x 15, 3" x 5/32" x 5/8" |
| Free Speed (min-1) | 15,000 |
| Spindle Thread Size (in) | M8-P1.25(F) |
| Power (W/ hp) | 330, 0.44 |
| Angle Head Height (mm/in) | 64, 2 33/64" |
| Overall Length (mm/in) | 217, 8.54" |
| Weight (kg/lb) | 1.2, 2.6 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.4, 14.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Rear Exhaust Type | FA-3CX-2 |
| Maximum Diameter(Mounted Wheel) (mm/in) | 100 x 6 x 15, 4" x 1/4" x 5/8" |
| Free Speed (min-1) | 13,500 |
| Spindle Thread Size (in) | M8-P1.25(F) |
| Power (W/ hp) | 330, 0.44 |
| Angle Head Height (mm/in) | 64, 2 33/64" |
| Overall Length (mm/in) | 217, 8.54" |
| Weight (kg/lb) | 1.2, 2.6 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.4, 14.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size - PT or NPT 1/4".
» (F) = Female Thread.
» (F) = Female Thread.
