Category >> FUJI ANGLE SANDERS FA-5C-5
รหัส : FA-5C-5รุ่น : FA-5C-5

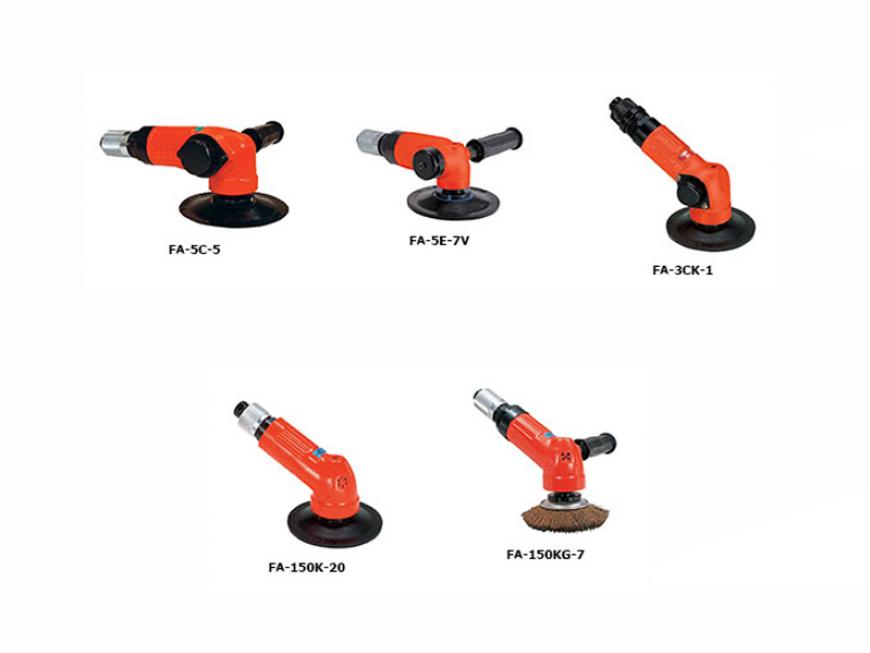

FUJI ANGLE SANDERS ROLL THROTTLE MODELS
| Model | FA-5C-5 |
| Maximum Diameter(Mounted Wheel) (Sanding Disc) (mm/in) | 180 x - x 22, 7" x - x 7/8" |
| Maximum Diameter (Mounted Wheel) (Wire Brush) (mm/in) | 100 x - x 15.8, 4" x - x 5/8" |
| Free Speed (min-1) | 7,000 |
| Spindle Thread Size (in) | W1/2-16(F) |
| Power (W/ hp) | 670, 0.8 |
| Angle Head Height (mm/in) | 85, 3 11/32" |
| Overall Length (mm/in) | 230, 9" |
| Weight (kg/lb) | 2.1, 4.6 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.58, 20.5 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FA-5E-7V |
| Maximum Diameter(Mounted Wheel) (Sanding Disc) (mm/in) | 180 x - x 22, 7" x - x 7/8" |
| Maximum Diameter (Mounted Wheel) (Wire Brush) (mm/in) | 100 x - x 15.8, 4" x - x 5/8" |
| Free Speed (min-1) | 7,000 |
| Spindle Thread Size (in) | M8-1.25P(F) |
| Power (W/ hp) | 960, 1.3 |
| Angle Head Height (mm/in) | 70, 2 3/4" |
| Overall Length (mm/in) | 212, 8 11/32" |
| Weight (kg/lb) | 1.9, 4.2 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.95, 33.5 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | •FA-3CK-1 |
| Maximum Diameter(Mounted Wheel) (Sanding Disc) (mm/in) | 100 x - x 15.9, 4" x - x 7/8" |
| Maximum Diameter (Mounted Wheel) (Wire Brush) (mm/in) | |
| Free Speed (min-1) | 11,000 |
| Spindle Thread Size (in) | 3/8-24UNF(M) |
| Power (W/ hp) | 340, 0.4 |
| Angle Head Height (mm/in) | 79, 3 7/64" |
| Overall Length (mm/in) | 164, 6 29/64" |
| Weight (kg/lb) | 1.1, 2.2 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.40, 14.1 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model | FA-150KG-7 |
| Maximum Diameter(Mounted Wheel) (Sanding Disc) (mm/in) | 180 x - x 22, 7" x - x 7/8" |
| Maximum Diameter (Mounted Wheel) (Wire Brush) (mm/in) | 125 x - x 15.8, 5" x - x 5/8" |
| Free Speed (min-1) | 5,500 |
| Spindle Thread Size (in) | W1/2-16(F) |
| Power (W/ hp) | 900, 1.2 |
| Angle Head Height (mm/in) | 87, 3 27/64" |
| Overall Length (mm/in) | 245, 9 41/64" |
| Weight (kg/lb) | 1.8, 4.0 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.15, 40.6 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model | •FA-150KG-20 |
| Maximum Diameter(Mounted Wheel) (Sanding Disc) (mm/in) | 150 x - x 22.2, 7" x - x 7/8" |
| Maximum Diameter (Mounted Wheel) (Wire Brush) (mm/in) | 125 x - x 15.8, 5" x - x 5/8" |
| Free Speed (min-1) | 8,400 |
| Spindle Thread Size (in) | W1/2-16(F) |
| Power (W/ hp) | 900, 1.2 |
| Angle Head Height (mm/in) | 80, 3 5/32" |
| Overall Length (mm/in) | 210, 8 17/64" |
| Weight (kg/lb) | 1.6, 4.0 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.00, 35.3 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
» Air Inlet Thread Size - FA-3CK-1: PT or NPT 1/4"; All Other Models: PT or NPT 3/8".
» FA-150KG-7 has a flange for Shank Brush. In case of paper sanding, you need flange for paper sanding.
» Model marked • do not have support handle.
» (F) = Female Thread; (M) = Male Thread.
» FA-150KG-7 has a flange for Shank Brush. In case of paper sanding, you need flange for paper sanding.
» Model marked • do not have support handle.
» (F) = Female Thread; (M) = Male Thread.
