Category >> FUJI DRILLS STRAIGHT/SIDE EXHAUST TYPE FRD-5S-1
รหัส : FRD-5S-1รุ่น : FRD-5S-1

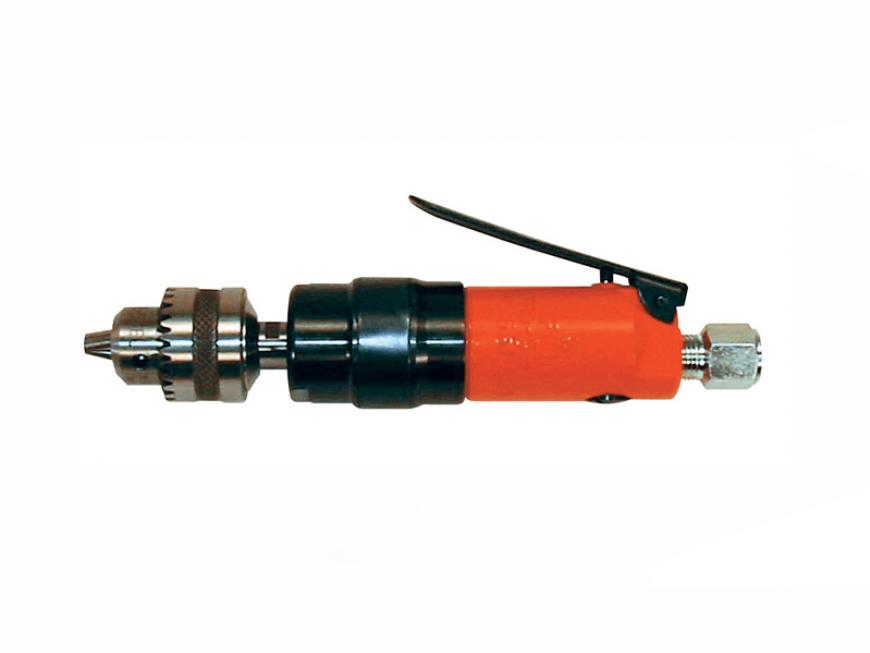

FUJI DRILLS STRAIGHT/SIDE EXHAUST TYPE
Thread Type
| Model Thread Type | FRD-5S-1 |
| Drilling Capacity (mm/ in) | 5, 3/16" |
| Stall Torque (N.m/kgf.m/ft.lb) | 0.2, 0.20, 0.15 |
| Free Speed (min-1) | 3,200 |
| Type and Size of Spindle (#) | 3/8-24. |
| Chuck Capacity (mm) | 6.5 |
| Side to Center (mm/ in) | 18.5, 47/64" |
| Power (W/ hp) | 180, 0.24 |
| Overall Length (mm/in) | 175, 6 57/64" |
| Weight (kg/lb) | 0.6, 1.3 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.60, 21.2 |
| Air Hose Size (mm/in) | 6.35, 1/4" |
| Model Thread Type | FRD-6S-2 |
| Drilling Capacity (mm/ in) | 5, 3/16" |
| Stall Torque (N.m/kgf.m/ft.lb) | 2.5, 0.25, 1.84 |
| Free Speed (min-1) | 4,300 |
| Type and Size of Spindle (#) | 3/8-24. |
| Chuck Capacity (mm) | 6.5 |
| Side to Center (mm/ in) | 21.0, 53/64" |
| Power (W/ hp) | 290, 0.39 |
| Overall Length (mm/in) | 209, 8 15/64" |
| Weight (kg/lb) | 0.9, 1.9 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.68, 24.0 |
| Air Hose Size (mm/in) | 9.5, 3/8 " |
| Model Thread Type | FRD-6S-3 |
| Drilling Capacity (mm/ in) | 8, 5/16" |
| Stall Torque (N.m/kgf.m/ft.lb) | 2.9, 0.30, 2.13 |
| Free Speed (min-1) | 2,800 |
| Type and Size of Spindle (#) | 3/8-24. |
| Chuck Capacity (mm) | 8 |
| Side to Center (mm/ in) | 21.0, 53/64" |
| Power (W/ hp) | 290, 0.39 |
| Overall Length (mm/in) | 212, 8 23/64" |
| Weight (kg/lb) | 1.0, 2.2 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.68, 24.0 |
| Air Hose Size (mm/in) | 9.5, 3/8 " |
| Model Thread Type | FRD-6S-5 |
| Drilling Capacity (mm/ in) | 10, 7/16" |
| Stall Torque (N.m/kgf.m/ft.lb) | 6.9, 0.70, 5.08 |
| Free Speed (min-1) | 1,300 |
| Type and Size of Spindle (#) | 3/8-24. |
| Chuck Capacity (mm) | 10 |
| Side to Center (mm/ in) | 23.0, 29/32 " |
| Power (W/ hp) | 290, 0.39 |
| Overall Length (mm/in) | 233, 9 3/16" |
| Weight (kg/lb) | 1.0, 3.3 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.68, 24.0 |
| Air Hose Size (mm/in) | 9.5, 3/8 " |
| Model Thread Type | FRD-6S-7 |
| Drilling Capacity (mm/ in) | 13, 1/2" |
| Stall Torque (N.m/kgf.m/ft.lb) | 15.7, 1.60, 11.6 |
| Free Speed (min-1) | 600 |
| Type and Size of Spindle (#) | 1/2-20. |
| Chuck Capacity (mm) | 13 |
| Side to Center (mm/ in) | 21.0, 53/64" |
| Power (W/ hp) | 290, 0.39 |
| Overall Length (mm/in) | 261, 10 9/32" |
| Weight (kg/lb) | 1.5 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.68, 24.0 |
| Air Hose Size (mm/in) | 9.5, 3/8 " |
Taper Type
| Model Taper Type | FRD-5S-2T |
| Drilling Capacity (mm/ in) | 2, 5/64" |
| Stall Torque (N.m/kgf.m/ft.lb) | 0.3, 0.03, 0.22 |
| Free Speed (min-1) | 24,000 |
| Type and Size of Spindle (#) | J.T.#D |
| Chuck Capacity (mm) | 5 |
| Side to Center (mm/ in) | 18.5, 47/64" |
| Power (W/ hp) | 180, 0.24 |
| Overall Length (mm/in) | 164, 6 15/32" |
| Weight (kg/lb) | 0.6, 1.3 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.60, 21.2 |
| Air Hose Size (mm/in) | 6.35, 1/4" |
| Model Taper Type | FRD-6S-1T |
| Drilling Capacity (mm/ in) | 3, 1/4" |
| Stall Torque (N.m/kgf.m/ft.lb) | 0.6, 0.06, 0.44 |
| Free Speed (min-1) | 21,000 |
| Type and Size of Spindle (#) | J.T.#1 |
| Chuck Capacity (mm) | 6.5 |
| Side to Center (mm/ in) | 21.0, 53/64" |
| Power (W/ hp) | 290, 0.39 |
| Overall Length (mm/in) | 177, 6 31/32" |
| Weight (kg/lb) | 0.7, 1.5 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.68, 24.0 |
| Air Hose Size (mm/in) | 9.5, 3/8 " |
» Air Inlet Thread Size - 1/4".
