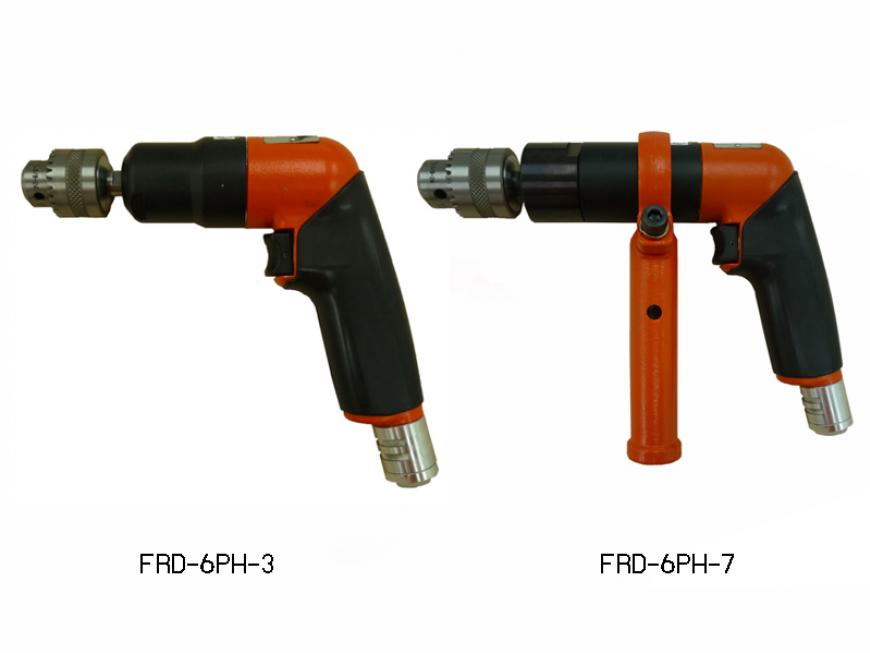

Category >> FUJI PISTOL/REAR EXHAUST TYPE FRD-6PH-3
รหัส : FRD-6PH-3รุ่น : FRD-6PH-3
FUJI PISTOL/REAR EXHAUST TYPE
Taper Type
| Model Taper Type | FRD-6PX-1T |
| Drilling Capacity (mm/ in) | 3, 1/8" |
| Stall Torque (N.m/kgf.m/ft.lb) | 0.6, 0.06, 0.44 |
| Free Speed (min-1) | 21,000 |
| Type and Size of Spindle (#) | J.T.#1 |
| Chuck Capacity (mm) | 6.5 |
| Side to Center (mm/ in) | 21.0, 53/64" |
| Power (W/ hp) | 290, 0.39 |
| Overall Length (mm/in) | 182, 7 11/64" |
| Weight (kg/lb) | 1.0, 2.2 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.55, 19.2 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Taper Type | FRD-6PH-2 |
| Drilling Capacity (mm/ in) | 5, 3/16" |
| Stall Torque (N.m/kgf.m/ft.lb) | 2.7, 0.27, 1.98 |
| Free Speed (min-1) | 4,300 |
| Type and Size of Spindle (#) | J.T.#1 |
| Chuck Capacity (mm) | 6.5 |
| Side to Center (mm/ in) | 21.0, 53/64" |
| Power (W/ hp) | 340, 0.46 |
| Overall Length (mm/in) | 198, 7 51/64" |
| Weight (kg/lb) | 0.9, 2.0 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.59, 20.6 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Taper Type | FRD-6PH-3 |
| Drilling Capacity (mm/ in) | 6.5, 1/4" |
| Stall Torque (N.m/kgf.m/ft.lb) | 4.3, 0.43, 3.17 |
| Free Speed (min-1) | 2,800 |
| Type and Size of Spindle (#) | J.T.#1 |
| Chuck Capacity (mm) | 6.5 |
| Side to Center (mm/ in) | 21.0, 53/64" |
| Power (W/ hp) | 340, 0.46 |
| Overall Length (mm/in) | 198, 7 51/64" |
| Weight (kg/lb) | 0.9, 2.0 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.59, 20.6 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Taper Type | FRD-6PH-3(8) |
| Drilling Capacity (mm/ in) | 8, 3/16" |
| Stall Torque (N.m/kgf.m/ft.lb) | 4.3, 0.43, 3.17 |
| Free Speed (min-1) | 2,800 |
| Type and Size of Spindle (#) | J.T.#1 |
| Chuck Capacity (mm) | 6.5 |
| Side to Center (mm/ in) | 21.0, 53/64" |
| Power (W/ hp) | 340, 0.46 |
| Overall Length (mm/in) | 205, 8 5/64" |
| Weight (kg/lb) | 1.0, 2.2 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.59, 20.6 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Taper Type | FRD-6PH-5 |
| Drilling Capacity (mm/ in) | 10, 7/16" |
| Stall Torque (N.m/kgf.m/ft.lb) | 7.5, 0.75, 5.53 |
| Free Speed (min-1) | 1,300 |
| Type and Size of Spindle (#) | J.T.#2S |
| Chuck Capacity (mm) | 10 |
| Side to Center (mm/ in) | 21.0, 53/64" |
| Power (W/ hp) | 320, 0.43 |
| Overall Length (mm/in) | 243, 9 9/16" |
| Weight (kg/lb) | 1.4, 3.1 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.59, 20.6 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Taper Type | FRD-6PH-7 |
| Drilling Capacity (mm/ in) | 13, 1/2" |
| Stall Torque (N.m/kgf.m/ft.lb) | 15.8, 0.16, 11.6 |
| Free Speed (min-1) | 600 |
| Type and Size of Spindle (#) | J.T.#6 |
| Chuck Capacity (mm) | 13 |
| Side to Center (mm/ in) | 22.5, 57/64" |
| Power (W/ hp) | 320, 0.43 |
| Overall Length (mm/in) | 258, 10 5/32" |
| Weight (kg/lb) | 1.5, 3.3 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.59, 20.6 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size - 1/4".
