Category >> FUJI PISTOL/REAR EXHAUST TYPE FRD-8PX-1
รหัส : FRD-8PX-1รุ่น : FRD-8PX-1

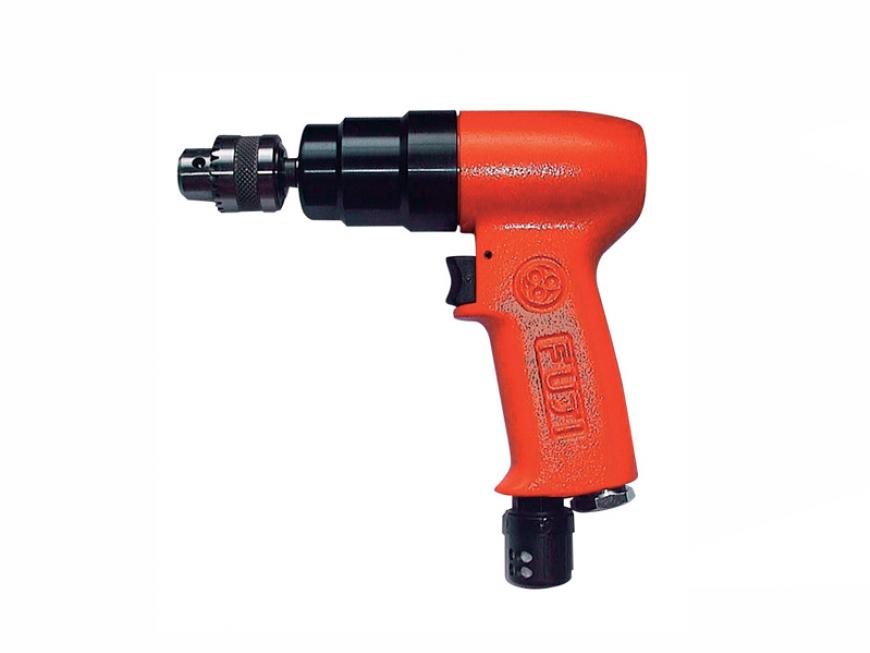

FUJI PISTOL/REAR EXHAUST TYPE
Thread Type
| Model Thread Type | •FRD-5P-1 |
| Drilling Capacity (mm/ in) | 5, 3/16" |
| Stall Torque (N.m/kgf.m/ft.lb) | 2.0, 0.20, 1.4 |
| Free Speed (min-1) | 3,200 |
| Type and Size of Spindle (#) | 3/8-24. |
| Chuck Capacity (mm) | 6.5 |
| Side to Center (mm/ in) | 18.0, 45/64" |
| Power (W/ hp) | 180, 0.24 |
| Overall Length (mm/in) | 155, 6 7/64" |
| Weight (kg/lb) | 0.6, 1.3 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.40, 14.1 |
| Air Hose Size (mm/in) | 6.35, 1/4" |
| Model Thread Type | •FRD-8PX-1 |
| Drilling Capacity (mm/ in) | 8, 5/16" |
| Stall Torque (N.m/kgf.m/ft.lb) | 5.9, 0.60, 4.3 |
| Free Speed (min-1) | 2,600 |
| Type and Size of Spindle (#) | 3/8-24. |
| Chuck Capacity (mm) | 8 |
| Side to Center (mm/ in) | 25.0, 63/64" |
| Power (W/ hp) | 440, 0.59 |
| Overall Length (mm/in) | 287, 7 3/8" |
| Weight (kg/lb) | 1.5, 3.3 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.76, 26.8 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Thread Type | •FRD-8PX-2 |
| Drilling Capacity (mm/ in) | 10, 7/16" |
| Stall Torque (N.m/kgf.m/ft.lb) | 11.8, 1.20, 8.6 |
| Free Speed (min-1) | 1,300 |
| Type and Size of Spindle (#) | 3/8-24. |
| Chuck Capacity (mm) | 10 |
| Side to Center (mm/ in) | 26.5, 1 3/64" |
| Power (W/ hp) | 440, 0.59 |
| Overall Length (mm/in) | 210, 8 9/32" |
| Weight (kg/lb) | 1.9, 4.2 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.76, 26.8 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
| Model Thread Type | •FRD-8PX-3 |
| Drilling Capacity (mm/ in) | 13, 1/2" |
| Stall Torque (N.m/kgf.m/ft.lb) | 16.7, 1.70, 12.3 |
| Free Speed (min-1) | 900 |
| Type and Size of Spindle (#) | 1/2-20. |
| Chuck Capacity (mm) | 13 |
| Side to Center (mm/ in) | 25.5, 1" |
| Power (W/ hp) | 440, 0.59 |
| Overall Length (mm/in) | 240, 9 29/64" |
| Weight (kg/lb) | 2.5, 5.5 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.76, 26.8 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size - 1/4".
» Marked • are furnished with Dead Handle.
» Marked • are furnished with Dead Handle.
