Category >> FUJI GRIP HANDLE MEDIUM SIZE DRILLS FRD-12Z-1
รหัส : FRD-12Z-1รุ่น : FRD-12Z-1

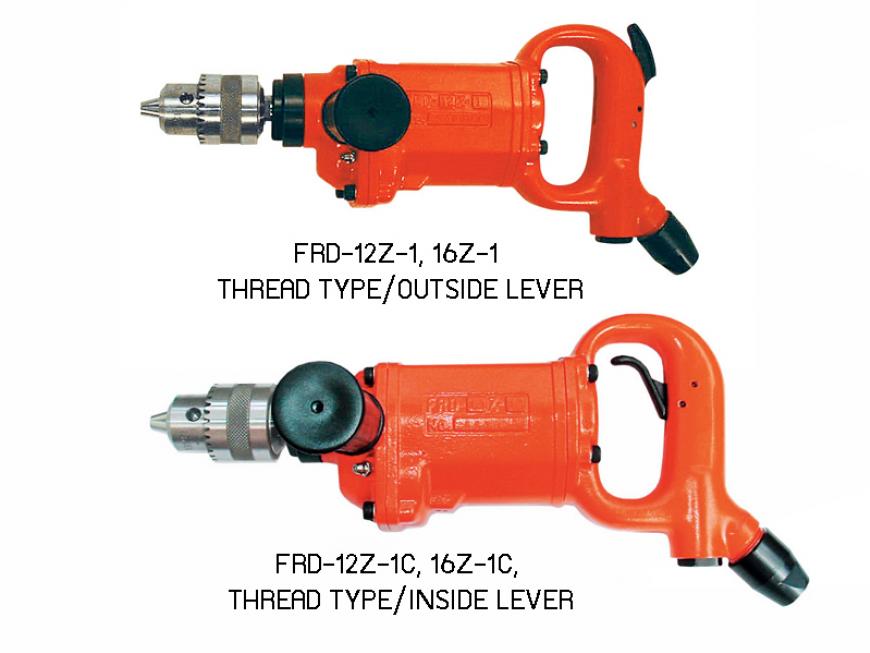

FUJI GRIP HANDLE MEDIUM SIZE DRILLS
| Thread Type/Outside Lever | |
| Model | FRD-12Z-1 |
| Drilling Capacity (mm/ in) | 12, 1/2" |
| Stall Torque (N.m/kgf.m/ft.lb) | 22.0, 2.2, 15.9 |
| Free Speed (min-1) | 1,200 |
| Type and Size of Spindle (#) | 1/2-20. |
| Chuck Capacity (mm) | 13 |
| Side to Center (mm/ in) | 34, 1 11/32" |
| Power (W/ hp) | 660, 0.89 |
| Overall Length (mm/in) | 324, 12 3/4" |
| Weight (kg/lb) | 3.3, 7.3 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.20, 42.4 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Thread Type/Outside Lever | |
| Model | FRD-16Z-1 |
| Drilling Capacity (mm/ in) | 16, 5/8" |
| Stall Torque (N.m/kgf.m/ft.lb) | 34.3, 3.5, 25.3 |
| Free Speed (min-1) | 800 |
| Type and Size of Spindle (#) | 5/8-16. |
| Chuck Capacity (mm) | 16 |
| Side to Center (mm/ in) | 34, 1 11/32" |
| Power (W/ hp) | - |
| Overall Length (mm/in) | 364, 14 21/64" |
| Weight (kg/lb) | 3.7, 8.1 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.20, 42.4 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Thread Type/Inside Lever | |
| Model | FRD-12Z-1C |
| Drilling Capacity (mm/ in) | 12, 1/2" |
| Stall Torque (N.m/kgf.m/ft.lb) | 22.0, 2.2, 15.9 |
| Free Speed (min-1) | 1,200 |
| Type and Size of Spindle (#) | 1/2-20. |
| Chuck Capacity (mm) | 13 |
| Side to Center (mm/ in) | 34, 1 11/32" |
| Power (W/ hp) | 660, 0.89 |
| Overall Length (mm/in) | 324, 12 3/4" |
| Weight (kg/lb) | 3.3, 7.3 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.20, 42.4 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Thread Type/Inside Lever | |
| Model | FRD-16Z-1C |
| Drilling Capacity (mm/ in) | 16, 5/8" |
| Stall Torque (N.m/kgf.m/ft.lb) | 34.3, 3.5, 25.3 |
| Free Speed (min-1) | 800 |
| Type and Size of Spindle (#) | 5/8-16. |
| Chuck Capacity (mm) | 16 |
| Side to Center (mm/ in) | 34, 1 11/32" |
| Power (W/ hp) | - |
| Overall Length (mm/in) | 364, 14 21/64" |
| Weight (kg/lb) | 3.7, 8.1 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.20, 42.4 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
» Air Inlet Thread Size - 3/8".
» All models can be used for reaming work.
» FRD-12Z Series: 8mm Capacity; FRD-16Z Series: 3mm Capacity.
» All models can be used for reaming work.
» FRD-12Z Series: 8mm Capacity; FRD-16Z Series: 3mm Capacity.
