Category >> FUJI HEAVY-DUTY DRILLS FRD-20R-21

รหัส : FRD-20R-21
รุ่น : FRD-20R-21

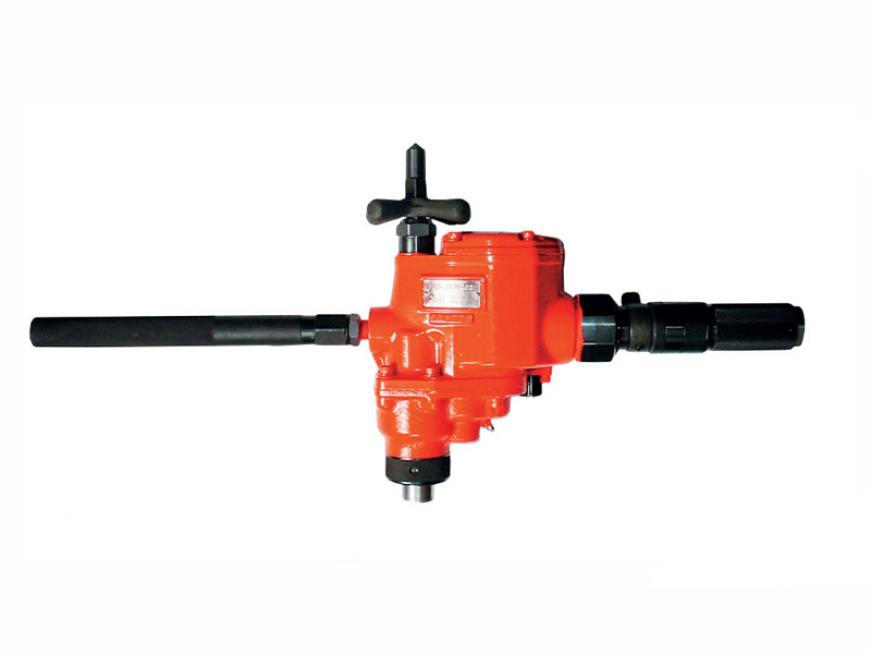

FUJI HEAVY-DUTY DRILLS

Model (Normal Roll Handle)	FRD-20R-21
Drilling Capacity (mm/ in)	19, 3/4"
Reaming Tapping (mm/ in)	16, 5/8"
Stall Torque (N.m/kgf.m/ft.lb)	63.7, 6.5, 47.0
Free Speed (min-1)	600
Socket (M.T.#)	2
Feed Length (mm/ in)	67, 2 41/64"
Power (W/ hp)	880, 1.18
Overall Length (mm/in)	282, 11 7/64"
Weight (kg/lb)	7.0, 15.4
Maximum Air Consumption (m3/min, ft3/min)	1.20, 42.4
Air Hose Size (mm/in)	12.7, 1/2"

Model (Self-Return Type)	FRD-20R-21S
Drilling Capacity (mm/ in)	19, 3/4"
Reaming Tapping (mm/ in)	16, 5/8"
Stall Torque (N.m/kgf.m/ft.lb)	63.7, 6.5, 47.0
Free Speed (min-1)	600
Socket (M.T.#)	2
Feed Length (mm/ in)	67, 2 41/64"
Power (W/ hp)	880, 1.18
Overall Length (mm/in)	282, 11 7/64"
Weight (kg/lb)	7.0, 15.4
Maximum Air Consumption (m3/min, ft3/min)	1.20, 42.4
Air Hose Size (mm/in)	12.7, 1/2"

Model (Normal Roll Handle)	FRD-20R-22
Drilling Capacity (mm/ in)	19, 3/4"
Reaming Tapping (mm/ in)	16, 5/8"
Stall Torque (N.m/kgf.m/ft.lb)	63.7, 6.5, 47.0
Free Speed (min-1)	600
Socket (M.T.#)	3
Feed Length (mm/ in)	67, 2 41/64"
Power (W/ hp)	880, 1.18
Overall Length (mm/in)	307, 12 3/32"
Weight (kg/lb)	7.0, 15.4
Maximum Air Consumption (m3/min, ft3/min)	1.20, 42.4
Air Hose Size (mm/in)	12.7, 1/2"

Model (Self-Return Type)	FRD-20R-22S
Drilling Capacity (mm/ in)	19, 3/4"
Reaming Tapping (mm/ in)	16, 5/8"
Stall Torque (N.m/kgf.m/ft.lb)	63.7, 6.5, 47.0
Free Speed (min-1)	600
Socket (M.T.#)	3
Feed Length (mm/ in)	67, 2 41/64"
Power (W/ hp)	880, 1.18
Overall Length (mm/in)	307, 12 3/32"
Weight (kg/lb)	7.0, 15.4
Maximum Air Consumption (m3/min, ft3/min)	1.20, 42.4
Air Hose Size (mm/in)	12.7, 1/2"

Model (Normal Roll Handle)	FRD-23R-21
Drilling Capacity (mm/ in)	22, 7/8"
Reaming Tapping (mm/ in)	19, 3/4"
Stall Torque (N.m/kgf.m/ft.lb)	78.4, 8.0, 57.8
Free Speed (min-1)	480
Socket (M.T.#)	2
Feed Length (mm/ in)	67, 2 41/64"
Power (W/ hp)	880, 1.18
Overall Length (mm/in)	282, 11 7/64"
Weight (kg/lb)	7.3, 16.0
Maximum Air Consumption (m3/min, ft3/min)	1.20, 42.4
Air Hose Size (mm/in)	12.7, 1/2"

Model (Self-Return Type)	FRD-23R-21S
Drilling Capacity (mm/ in)	22, 7/8"
Reaming Tapping (mm/ in)	19, 3/4"
Stall Torque (N.m/kgf.m/ft.lb)	78.4, 8.0, 57.8
Free Speed (min-1)	480
Socket (M.T.#)	2
Feed Length (mm/ in)	67, 2 41/64"
Power (W/ hp)	880, 1.18
Overall Length (mm/in)	282, 11 7/64"
Weight (kg/lb)	7.3, 16.0
Maximum Air Consumption (m3/min, ft3/min)	1.20, 42.4
Air Hose Size (mm/in)	12.7, 1/2"

Model (Normal Roll Handle)	FRD-23R-22
Drilling Capacity (mm/ in)	22, 7/8"
Reaming Tapping (mm/ in)	19, 3/4"
Stall Torque (N.m/kgf.m/ft.lb)	78.4, 8.0, 57.8
Free Speed (min-1)	480
Socket (M.T.#)	3
Feed Length (mm/ in)	67, 2 41/64"
Power (W/ hp)	880, 1.18
Overall Length (mm/in)	307, 12 3/32"
Weight (kg/lb)	7.4, 16.3
Maximum Air Consumption (m3/min, ft3/min)	1.20, 42.4
Air Hose Size (mm/in)	12.7, 1/2"

Model (Self-Return Type)	FRD-23R-22S
Drilling Capacity (mm/ in)	22, 7/8"
Reaming Tapping (mm/ in)	19, 3/4"
Stall Torque (N.m/kgf.m/ft.lb)	78.4, 8.0, 57.8
Free Speed (min-1)	480
Socket (M.T.#)	3
Feed Length (mm/ in)	67, 2 41/64"
Power (W/ hp)	880, 1.18
Overall Length (mm/in)	307, 12 3/32"
Weight (kg/lb)	7.4, 16.3
Maximum Air Consumption (m3/min, ft3/min)	1.20, 42.4
Air Hose Size (mm/in)	12.7, 1/2"

Model (Normal Roll Handle)	FRD-25R-11
Drilling Capacity (mm/ in)	25, 1"
Reaming Tapping (mm/ in)	22, 7/8"
Stall Torque (N.m/kgf.m/ft.lb)	147.0, 15.0, 108.4
Free Speed (min-1)	530
Socket (M.T.#)	3
Feed Length (mm/ in)	96, 3 25/32"
Power (W/ hp)	210, 2.82
Overall Length (mm/in)	353, 13 29/32"
Weight (kg/lb)	14.0, 30.8
Maximum Air Consumption (m3/min, ft3/min)	3.20, 113.0
Air Hose Size (mm/in)	19, 3/4"

Model (Self-Return Type)	FRD-25R-11S
Drilling Capacity (mm/ in)	25, 1"
Reaming Tapping (mm/ in)	22, 7/8"
Stall Torque (N.m/kgf.m/ft.lb)	147.0, 15.0, 108.4
Free Speed (min-1)	530
Socket (M.T.#)	3
Feed Length (mm/ in)	96, 3 25/32"
Power (W/ hp)	210, 2.82
Overall Length (mm/in)	353, 13 29/32"
Weight (kg/lb)	14.0, 30.8
Maximum Air Consumption (m3/min, ft3/min)	3.20, 113.0
Air Hose Size (mm/in)	19, 3/4"

Model (Normal Roll Handle)	FRD-28R-11
Drilling Capacity (mm/ in)	28, 1 1/8"
Reaming Tapping (mm/ in)	25, 1"
Stall Torque (N.m/kgf.m/ft.lb)	177.0, 18.0, 130.1
Free Speed (min-1)	430
Socket (M.T.#)	3
Feed Length (mm/ in)	96, 3 25/32"
Power (W/ hp)	210, 2.82
Overall Length (mm/in)	353, 13 29/32"
Weight (kg/lb)	14.0, 30.8
Maximum Air Consumption (m3/min, ft3/min)	3.20, 113.0
Air Hose Size (mm/in)	19, 3/4"

Model (Self-Return Type)	FRD-28R-11S
Drilling Capacity (mm/ in)	28, 1 1/8"
Reaming Tapping (mm/ in)	25, 1"
Stall Torque (N.m/kgf.m/ft.lb)	177.0, 18.0, 130.1
Free Speed (min-1)	430
Socket (M.T.#)	3
Feed Length (mm/ in)	96, 3 25/32"
Power (W/ hp)	210, 2.82
Overall Length (mm/in)	353, 13 29/32"
Weight (kg/lb)	14.0, 30.8
Maximum Air Consumption (m3/min, ft3/min)	3.20, 113.0
Air Hose Size (mm/in)	19, 3/4"

Model (Normal Roll Handle)	FRD-32R-11
Drilling Capacity (mm/ in)	32, 1 1/4"
Reaming Tapping (mm/ in)	25, 1"
Stall Torque (N.m/kgf.m/ft.lb)	196.0, 20.0, 144.6
Free Speed (min-1)	380
Socket (M.T.#)	3
Feed Length (mm/ in)	96, 3 25/32"
Power (W/ hp)	210, 2.82
Overall Length (mm/in)	353, 13 29/32"
Weight (kg/lb)	14.5, 31.9
Maximum Air Consumption (m3/min, ft3/min)	3.20, 113.0
Air Hose Size (mm/in)	19, 3/4"

Model (Self-Return Type)	FRD-32R-11S
Drilling Capacity (mm/ in)	32, 1 1/4"
Reaming Tapping (mm/ in)	25, 1"
Stall Torque (N.m/kgf.m/ft.lb)	196.0, 20.0, 144.6
Free Speed (min-1)	380
Socket (M.T.#)	3
Feed Length (mm/ in)	96, 3 25/32"
Power (W/ hp)	210, 2.82
Overall Length (mm/in)	353, 13 29/32"
Weight (kg/lb)	14.5, 31.9
Maximum Air Consumption (m3/min, ft3/min)	3.20, 113.0
Air Hose Size (mm/in)	19, 3/4"

Model (Normal Roll Handle)	FRD-32R-12
Drilling Capacity (mm/ in)	32, 1 1/4"
Reaming Tapping (mm/ in)	25, 1"
Stall Torque (N.m/kgf.m/ft.lb)	196.0, 20.0, 144.6
Free Speed (min-1)	380
Socket (M.T.#)	4
Feed Length (mm/ in)	96, 3 25/32"
Power (W/ hp)	210, 2.82
Overall Length (mm/in)	353, 13 29/32"
Weight (kg/lb)	14.5, 31.9
Maximum Air Consumption (m3/min, ft3/min)	3.20, 113.0
Air Hose Size (mm/in)	19, 3/4"

Model (Self-Return Type)	FRD-32R-12S
Drilling Capacity (mm/ in)	32, 1 1/4"
Reaming Tapping (mm/ in)	25, 1"
Stall Torque (N.m/kgf.m/ft.lb)	196.0, 20.0, 144.6
Free Speed (min-1)	380
Socket (M.T.#)	4
Feed Length (mm/ in)	96, 3 25/32"
Power (W/ hp)	210, 2.82
Overall Length (mm/in)	353, 13 29/32"
Weight (kg/lb)	14.5, 31.9
Maximum Air Consumption (m3/min, ft3/min)	3.20, 113.0
Air Hose Size (mm/in)	19, 3/4"

» Air Inlet Thread All Other Models: 1/2".
