Category >> FUJI HEAVY-DUTY CORNER DRILLS (REVERSIBLE) FCD-23R-11

รหัส : FCD-23R-11
รุ่น : FCD-23R-11

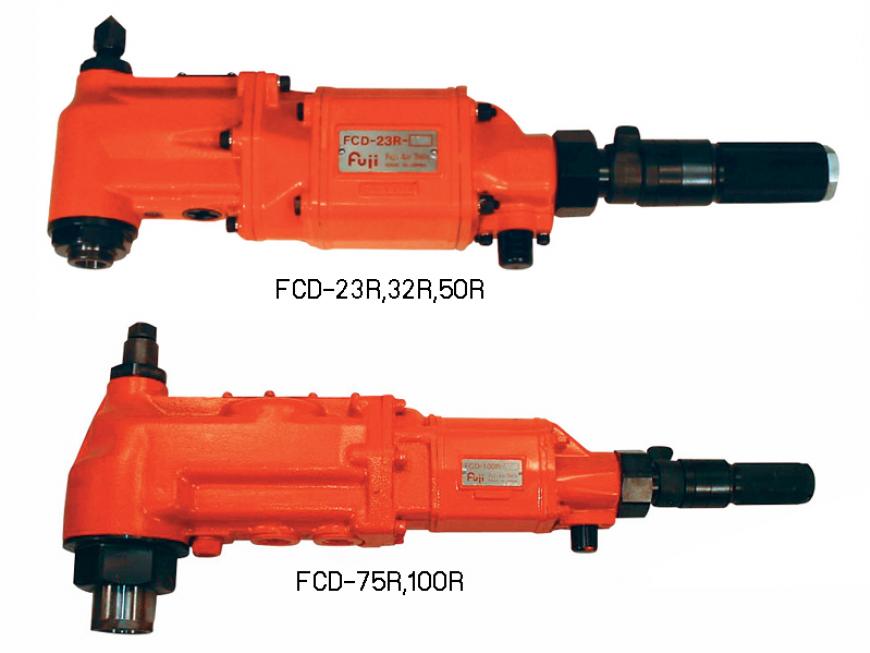

FUJI HEAVY-DUTY CORNER DRILLS (REVERSIBLE)

Model (Normal Roll Handle)	FCD-23R-11
Drilling Capacity (mm/ in)	22, 7/8"
Reaming Tapping (mm/ in)	19.0, 3/4"
Stall Torque (N.m/kgf.m/ft.lb)	80.4, 8.2, 59.3
Free Speed (min-1)	430
Socket (M.T.#)	2
Side to Center (mm/ in)	27, 1 1/16"
Feed Length (mm/ in)	35, 1 3/8"
Power (W/ hp)	900, 1.21
Overall Length (mm/in)	472, 18 37/64"
Weight (kg/lb)	7.0, 15.4
Maximum Air Consumption (m3/min, ft3/min)	1.50, 53.0
Air Hose Size (mm/in)	12.7, 1/2"

Model (Self-Return Type)	FCD-23R-11S
Drilling Capacity (mm/ in)	22, 7/8"
Reaming Tapping (mm/ in)	19.0, 3/4"
Stall Torque (N.m/kgf.m/ft.lb)	80.4, 8.2, 59.3
Free Speed (min-1)	430
Socket (M.T.#)	2
Side to Center (mm/ in)	27, 1 1/16"
Feed Length (mm/ in)	35, 1 3/8"
Power (W/ hp)	900, 1.21
Overall Length (mm/in)	472, 18 37/64"
Weight (kg/lb)	7.0, 15.4
Maximum Air Consumption (m3/min, ft3/min)	1.50, 53.0
Air Hose Size (mm/in)	12.7, 1/2"

Model (Normal Roll Handle)	FCD-23R-12
Drilling Capacity (mm/ in)	22, 7/8"
Reaming Tapping (mm/ in)	19.0, 3/4"
Stall Torque (N.m/kgf.m/ft.lb)	80.4, 8.2, 59.3
Free Speed (min-1)	430
Socket (M.T.#)	3
Side to Center (mm/ in)	27, 1 1/16"
Feed Length (mm/ in)	35, 1 3/8"
Power (W/ hp)	900, 1.21
Overall Length (mm/in)	472, 18 37/64"
Weight (kg/lb)	7.1, 15.6
Maximum Air Consumption (m3/min, ft3/min)	1.50, 53.0
Air Hose Size (mm/in)	12.7, 1/2"

Model (Self-Return Type)	FCD-23R-12S
Drilling Capacity (mm/ in)	22, 7/8"
Reaming Tapping (mm/ in)	19.0, 3/4"
Stall Torque (N.m/kgf.m/ft.lb)	80.4, 8.2, 59.3
Free Speed (min-1)	430
Socket (M.T.#)	3
Side to Center (mm/ in)	27, 1 1/16"
Feed Length (mm/ in)	35, 1 3/8"
Power (W/ hp)	900, 1.21
Overall Length (mm/in)	472, 18 37/64"
Weight (kg/lb)	7.1, 15.6
Maximum Air Consumption (m3/min, ft3/min)	1.50, 53.0
Air Hose Size (mm/in)	12.7, 1/2"

Model (Normal Roll Handle)	FCD-32R-11
Drilling Capacity (mm/ in)	32, 1 1/4"
Reaming Tapping (mm/ in)	32.0, 1 1/4"
Stall Torque (N.m/kgf.m/ft.lb)	177.0, 18.0, 130.0
Free Speed (min-1)	350
Socket (M.T.#)	3
Side to Center (mm/ in)	35, 1 3/8"
Feed Length (mm/ in)	53, 22 3/4"
Power (W/ hp)	1,600, 2.15
Overall Length (mm/in)	578, 22 3/4"
Weight (kg/lb)	13.5, 29.7
Maximum Air Consumption (m3/min, ft3/min)	1.80, 63.5
Air Hose Size (mm/in)	12.7, 1/2"

Model (Self-Return Type)	FCD-32R-11S
Drilling Capacity (mm/ in)	32, 1 1/4"
Reaming Tapping (mm/ in)	32.0, 1 1/4"
Stall Torque (N.m/kgf.m/ft.lb)	177.0, 18.0, 130.0
Free Speed (min-1)	350
Socket (M.T.#)	3
Side to Center (mm/ in)	35, 1 3/8"
Feed Length (mm/ in)	53, 22 3/4"
Power (W/ hp)	1,600, 2.15
Overall Length (mm/in)	578, 22 3/4"
Weight (kg/lb)	13.5, 29.7
Maximum Air Consumption (m3/min, ft3/min)	1.80, 63.5
Air Hose Size (mm/in)	12.7, 1/2"

Model (Normal Roll Handle)	FCD-50R-11
Drilling Capacity (mm/ in)	50, 2"
Reaming Tapping (mm/ in)	50.0, 2"
Stall Torque (N.m/kgf.m/ft.lb)	392.0, 40.0, 289.0
Free Speed (min-1)	140
Socket (M.T.#)	4
Side to Center (mm/ in)	41, 1 5/8"
Feed Length (mm/ in)	58, 2 5/16"
Power (W/ hp)	1,600, 2.15
Overall Length (mm/in)	595, 23 27/64"
Weight (kg/lb)	16.0, 35.2
Maximum Air Consumption (m3/min, ft3/min)	2.25, 79.4
Air Hose Size (mm/in)	19, 3/4"

Model (Self-Return Type)	FCD-50R-11S
Drilling Capacity (mm/ in)	50, 2"
Reaming Tapping (mm/ in)	50.0, 2"
Stall Torque (N.m/kgf.m/ft.lb)	392.0, 40.0, 289.0
Free Speed (min-1)	140
Socket (M.T.#)	4
Side to Center (mm/ in)	41, 1 5/8"
Feed Length (mm/ in)	58, 2 5/16"
Power (W/ hp)	1,600, 2.15
Overall Length (mm/in)	595, 23 27/64"
Weight (kg/lb)	16.0, 35.2
Maximum Air Consumption (m3/min, ft3/min)	2.25, 79.4
Air Hose Size (mm/in)	19, 3/4"

Model (Normal Roll Handle)	FCD-75R-11
Drilling Capacity (mm/ in)	75, 3"
Reaming Tapping (mm/ in)	75.0, 3"
Stall Torque (N.m/kgf.m/ft.lb)	834.0, 85.0, 614.8
Free Speed (min-1)	85
Socket (M.T.#)	5
Side to Center (mm/ in)	49, 1 15/16"
Feed Length (mm/ in)	57, 2 1/4"
Power (W/ hp)	1,900, 2.55
Overall Length (mm/in)	651, 25 5/8"
Weight (kg/lb)	20.5, 45.1
Maximum Air Consumption (m3/min, ft3/min)	2.50, 88.3
Air Hose Size (mm/in)	19, 3/4"

Model (Self-Return Type)	FCD-75R-11S
Drilling Capacity (mm/ in)	75, 3"
Reaming Tapping (mm/ in)	75.0, 3"
Stall Torque (N.m/kgf.m/ft.lb)	834.0, 85.0, 614.8
Free Speed (min-1)	85
Socket (M.T.#)	5
Side to Center (mm/ in)	49, 1 15/16"
Feed Length (mm/ in)	57, 2 1/4"
Power (W/ hp)	1,900, 2.55
Overall Length (mm/in)	651, 25 5/8"
Weight (kg/lb)	20.5, 45.1
Maximum Air Consumption (m3/min, ft3/min)	2.50, 88.3
Air Hose Size (mm/in)	19, 3/4"

Model (Normal Roll Handle)	FCD-100R-11
Drilling Capacity (mm/ in)	100, 4"
Reaming Tapping (mm/ in)	100.0, 4"
Stall Torque (N.m/kgf.m/ft.lb)	1,370.0, 140.0, 1,012.6
Free Speed (min-1)	40
Socket (M.T.#)	5
Side to Center (mm/ in)	62, 2 7/16"
Feed Length (mm/ in)	105, 1 1/8"
Power (W/ hp)	1,900, 2.55
Overall Length (mm/in)	730, 28 3/4"
Weight (kg/lb)	29.3, 64.4
Maximum Air Consumption (m3/min, ft3/min)	2.25, 79.4
Air Hose Size (mm/in)	19, 3/4"

Model (Self-Return Type)	FCD-100R-11S
Drilling Capacity (mm/ in)	100, 4"
Reaming Tapping (mm/ in)	100.0, 4"
Stall Torque (N.m/kgf.m/ft.lb)	1,370.0, 140.0, 1,012.6
Free Speed (min-1)	40
Socket (M.T.#)	5
Side to Center (mm/ in)	62, 2 7/16"
Feed Length (mm/ in)	105, 1 1/8"
Power (W/ hp)	1,900, 2.55
Overall Length (mm/in)	730, 28 3/4"
Weight (kg/lb)	29.3, 64.4
Maximum Air Consumption (m3/min, ft3/min)	2.25, 79.4
Air Hose Size (mm/in)	19, 3/4"

» Air Inlet Thread Size - 1/2".
