Category >> FUJI HEAVY-DUTY CORNER DRILLS (REVERSIBLE) F-22RCR
รหัส : F-22RCRรุ่น : F-22RCR

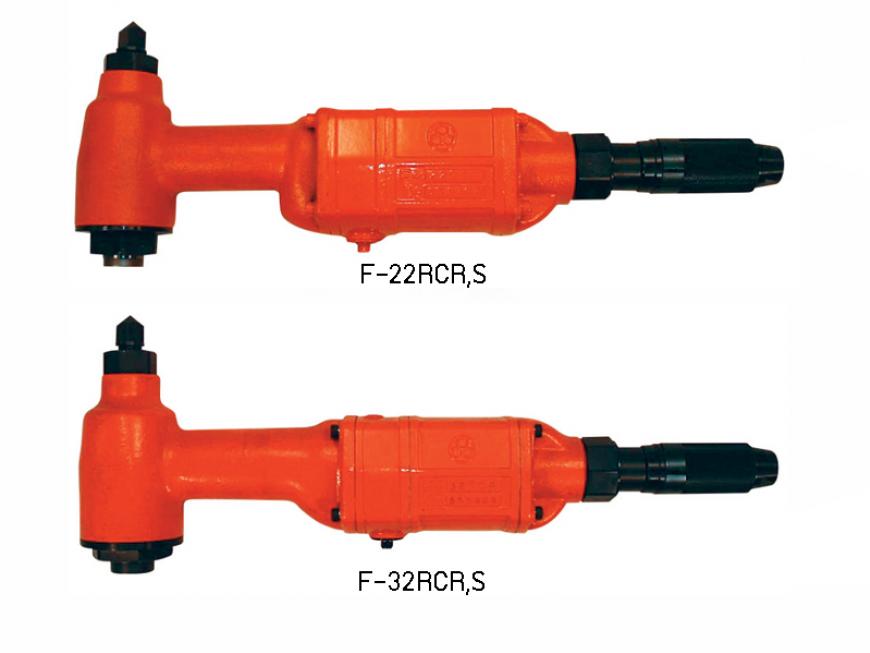

FUJI HEAVY-DUTY CORNER DRILLS (REVERSIBLE)
| Model (Normal Roll Handle) | F-22RCR |
| Drilling Capacity (mm/ in) | 22, 7/8" |
| Reaming Tapping (mm/ in) | 19.0, 3/4" |
| Stall Torque (N.m/kgf.m/ft.lb) | 93.2, 9.5, 68.7 |
| Free Speed (min-1) | 400 |
| Socket (M.T.#) | 2 |
| Side to Center (mm/ in) | 35, 1 3/8" |
| Feed Length (mm/ in) | 60, 2 3/8" |
| Power (W/ hp) | 900, 1.21 |
| Overall Length (mm/in) | 505, 19 7/8" |
| Weight (kg/lb) | 8.5, 18.7 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.50, 53.0 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model (Self-Return Type) | F-22RCR-1S |
| Drilling Capacity (mm/ in) | 22, 7/8" |
| Reaming Tapping (mm/ in) | 19.0, 3/4" |
| Stall Torque (N.m/kgf.m/ft.lb) | 93.2, 9.5, 68.7 |
| Free Speed (min-1) | 400 |
| Socket (M.T.#) | 2 |
| Side to Center (mm/ in) | 35, 1 3/8" |
| Feed Length (mm/ in) | 60, 2 3/8" |
| Power (W/ hp) | 900, 1.21 |
| Overall Length (mm/in) | 505, 19 7/8" |
| Weight (kg/lb) | 8.5, 18.7 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.50, 53.0 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model (Normal Roll Handle) | F-32RCR |
| Drilling Capacity (mm/ in) | 32, 1 1/4" |
| Reaming Tapping (mm/ in) | 25.0, 1" |
| Stall Torque (N.m/kgf.m/ft.lb) | 113.0, 11.5, 83.1 |
| Free Speed (min-1) | 315 |
| Socket (M.T.#) | 3 |
| Side to Center (mm/ in) | 40, 1 37/64" |
| Feed Length (mm/ in) | 60, 2 3/8" |
| Power (W/ hp) | 810, 1.09 |
| Overall Length (mm/in) | 538, 21 3/16" |
| Weight (kg/lb) | 10.0, 22.0 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.50, 53.0 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
| Model (Self-Return Type) | F-32RCR-1S |
| Drilling Capacity (mm/ in) | 32, 1 1/4" |
| Reaming Tapping (mm/ in) | 25.0, 1" |
| Stall Torque (N.m/kgf.m/ft.lb) | 113.0, 11.5, 83.1 |
| Free Speed (min-1) | 315 |
| Socket (M.T.#) | 3 |
| Side to Center (mm/ in) | 40, 1 37/64" |
| Feed Length (mm/ in) | 60, 2 3/8" |
| Power (W/ hp) | 810, 1.09 |
| Overall Length (mm/in) | 538, 21 3/16" |
| Weight (kg/lb) | 10.0, 22.0 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.50, 53.0 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
» Air Inlet Thread Size - 1/2".
