Category >> FUJI HEAVY-DUTY CORNER DRILLS (NON-REVERSIBLE) F-14CN

รหัส : F-14CN
รุ่น : F-14CN

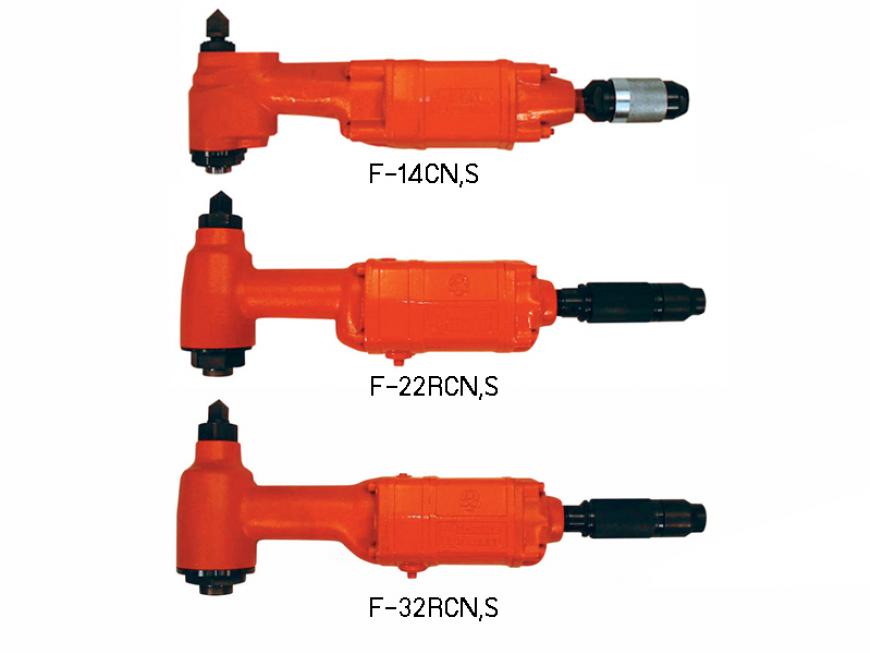

FUJI HEAVY-DUTY CORNER DRILLS (NON-REVERSIBLE)

Model (Normal Roll Handle)	F-14CN
Drilling Capacity (mm/ in)	14, 9/16"
Reaming Tapping (mm/ in)	9.5, 3/8"
Stall Torque (N.m/kgf.m/ft.lb)	31.4, 3.2, 23.1
Free Speed (min-1)	1,000
Socket (M.T.#)	1
Side to Center (mm/ in)	24, 15/16"
Feed Length (mm/ in)	38, 1 1/2"
Power (W/ hp)	700, 0.94
Overall Length (mm/in)	410, 16 9/64"
Weight (kg/lb)	4.6, 10.1
Maximum Air Consumption (m3/min, ft3/min)	1.25, 44.1
Air Hose Size (mm/in)	12.7, 1/2"

Model (Self-Return Type)	F-14CN-1S
Drilling Capacity (mm/ in)	14, 9/16"
Reaming Tapping (mm/ in)	9.5, 3/8"
Stall Torque (N.m/kgf.m/ft.lb)	31.4, 3.2, 23.1
Free Speed (min-1)	1,000
Socket (M.T.#)	1
Side to Center (mm/ in)	24, 15/16"
Feed Length (mm/ in)	38, 1 1/2"
Power (W/ hp)	700, 0.94
Overall Length (mm/in)	410, 16 9/64"
Weight (kg/lb)	4.6, 10.1
Maximum Air Consumption (m3/min, ft3/min)	1.25, 44.1
Air Hose Size (mm/in)	12.7, 1/2"

Model (Normal Roll Handle)	F-14CN-2
Drilling Capacity (mm/ in)	14, 9/16"
Reaming Tapping (mm/ in)	9.5, 3/8"
Stall Torque (N.m/kgf.m/ft.lb)	31.4, 3.2, 23.1
Free Speed (min-1)	1,000
Socket (M.T.#)	2
Side to Center (mm/ in)	24, 15/16"
Feed Length (mm/ in)	38, 1 1/2"
Power (W/ hp)	700, 0.94
Overall Length (mm/in)	410, 16 9/64"
Weight (kg/lb)	4.6, 10.1
Maximum Air Consumption (m3/min, ft3/min)	1.25, 44.1
Air Hose Size (mm/in)	12.7, 1/2"

Model (Self-Return Type)	F-14CN-2S
Drilling Capacity (mm/ in)	14, 9/16"
Reaming Tapping (mm/ in)	9.5, 3/8"
Stall Torque (N.m/kgf.m/ft.lb)	31.4, 3.2, 23.1
Free Speed (min-1)	1,000
Socket (M.T.#)	2
Side to Center (mm/ in)	24, 15/16"
Feed Length (mm/ in)	38, 1 1/2"
Power (W/ hp)	700, 0.94
Overall Length (mm/in)	410, 16 9/64"
Weight (kg/lb)	4.6, 10.1
Maximum Air Consumption (m3/min, ft3/min)	1.25, 44.1
Air Hose Size (mm/in)	12.7, 1/2"

Model (Normal Roll Handle)	F-22RCN
Drilling Capacity (mm/ in)	22, 7/8"
Reaming Tapping (mm/ in)	19.0, 3/4"
Stall Torque (N.m/kgf.m/ft.lb)	108.0, 11.0, 79.5
Free Speed (min-1)	450
Socket (M.T.#)	2
Side to Center (mm/ in)	35, 1 3/8"
Feed Length (mm/ in)	60, 2 3/8"
Power (W/ hp)	1,100, 1.48
Overall Length (mm/in)	493, 19 13/32"
Weight (kg/lb)	8.5, 18.7
Maximum Air Consumption (m3/min, ft3/min)	1.50, 53.0
Air Hose Size (mm/in)	12.7, 1/2"

Model (Self-Return Type)	F-22RCN-1S
Drilling Capacity (mm/ in)	22, 7/8"
Reaming Tapping (mm/ in)	19.0, 3/4"
Stall Torque (N.m/kgf.m/ft.lb)	108.0, 11.0, 79.5
Free Speed (min-1)	450
Socket (M.T.#)	2
Side to Center (mm/ in)	35, 1 3/8"
Feed Length (mm/ in)	60, 2 3/8"
Power (W/ hp)	1,100, 1.48
Overall Length (mm/in)	493, 19 13/32"
Weight (kg/lb)	8.5, 18.7
Maximum Air Consumption (m3/min, ft3/min)	1.50, 53.0
Air Hose Size (mm/in)	12.7, 1/2"

Model (Normal Roll Handle)	F-32RCN
Drilling Capacity (mm/ in)	32, 1 1/4"
Reaming Tapping (mm/ in)	25.0, 1"
Stall Torque (N.m/kgf.m/ft.lb)	127.0, 13.0, 94.0
Free Speed (min-1)	400
Socket (M.T.#)	3
Side to Center (mm/ in)	40, 1 37/64"
Feed Length (mm/ in)	60, 2 3/8"
Power (W/ hp)	1,320, 1.7
Overall Length (mm/in)	523, 20 53/64"
Weight (kg/lb)	9.7, 21.3
Maximum Air Consumption (m3/min, ft3/min)	1.50, 53.0
Air Hose Size (mm/in)	12.7, 1/2"

Model (Self-Return Type)	F-32RCN-1S
Drilling Capacity (mm/ in)	32, 1 1/4"
Reaming Tapping (mm/ in)	25.0, 1"
Stall Torque (N.m/kgf.m/ft.lb)	127.0, 13.0, 94.0
Free Speed (min-1)	400
Socket (M.T.#)	3
Side to Center (mm/ in)	40, 1 37/64"
Feed Length (mm/ in)	60, 2 3/8"
Power (W/ hp)	1,320, 1.7
Overall Length (mm/in)	523, 20 53/64"
Weight (kg/lb)	9.7, 21.3
Maximum Air Consumption (m3/min, ft3/min)	1.50, 53.0
Air Hose Size (mm/in)	12.7, 1/2"

Model (Normal Roll Handle)	F-32RCNS
Drilling Capacity (mm/ in)	32, 1 1/4"
Reaming Tapping (mm/ in)	25.0, 1"
Stall Torque (N.m/kgf.m/ft.lb)	127.0, 13.0, 94.0
Free Speed (min-1)	400
Socket (M.T.#)	3
Side to Center (mm/ in)	40, 1 37/64"
Feed Length (mm/ in)	25, 1"
Power (W/ hp)	1,320, 1.7
Overall Length (mm/in)	523, 20 53/64"
Weight (kg/lb)	8.8, 19.3
Maximum Air Consumption (m3/min, ft3/min)	1.50, 53.0
Air Hose Size (mm/in)	12.7, 1/2"

Model (Self-Return Type)	F-32RCNS-1S
Drilling Capacity (mm/ in)	32, 1 1/4"
Reaming Tapping (mm/ in)	25.0, 1"
Stall Torque (N.m/kgf.m/ft.lb)	127.0, 13.0, 94.0
Free Speed (min-1)	400
Socket (M.T.#)	3
Side to Center (mm/ in)	40, 1 37/64"
Feed Length (mm/ in)	25, 1"
Power (W/ hp)	1,320, 1.7
Overall Length (mm/in)	523, 20 53/64"
Weight (kg/lb)	8.8, 19.3
Maximum Air Consumption (m3/min, ft3/min)	1.50, 53.0
Air Hose Size (mm/in)	12.7, 1/2"

» Air Inlet Thread Size - F-14CN Series: 3/8"; All Other Models: 1/2".
