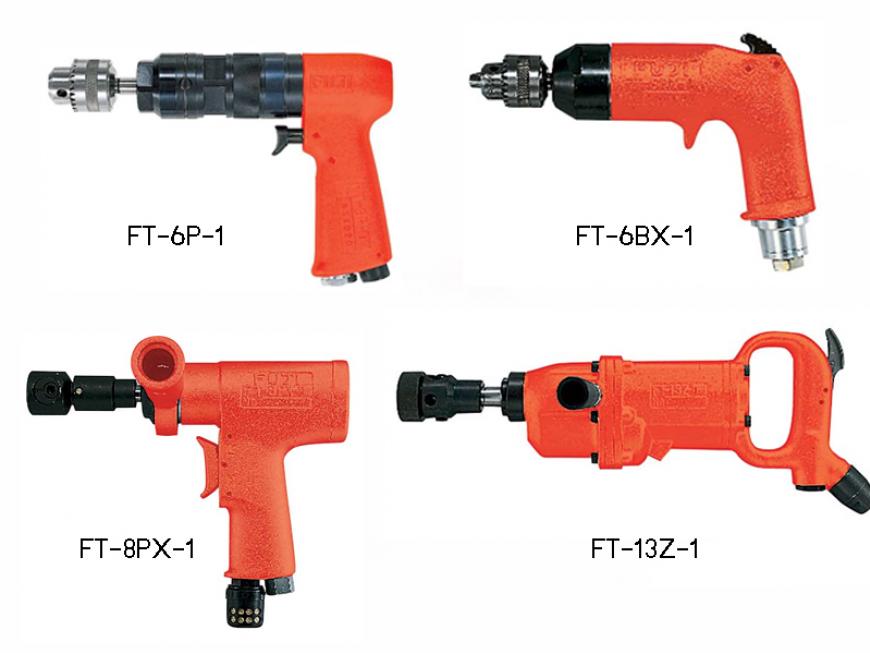

Category >> FUJI TAPPERS FT-6P-1
รหัส : FT-6P-1รุ่น : FT-6P-1
FUJI TAPPERS FT-6P-1
| Model | FT-6P-1 |
| Tapping Capacity (Guidance) Steel(mm/ in),Aluminum(mm/ in) | 6, 1/4" / 8, 5/16" |
| Free Speed min-1 (R/L) | 1,000, 1,000 |
| Type and Size of Spindle (Tapper #) | J.T.#1 |
| Chuck Capacity (M.T.#) | 8 |
| Overall Length (mm/in) | 236, 9 19/64" |
| Weight (kg/lb) | 1.8, 4.0 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.50, 17.7 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
FUJI TAPPERS FT-6BX-1 (Drill Chuck Type)
| Model | FT-6BX-1 (Drill Chuck Type) |
| Tapping Capacity (Guidance) Steel(mm/ in),Aluminum(mm/ in) | 6, 1/4" / 8, 5/16" |
| Free Speed min-1 (R/L) | 2,000, 2,000 |
| Type and Size of Spindle (Tapper #) | J.T.#1 |
| Chuck Capacity (M.T.#) | 6.5 |
| Overall Length (mm/in) | 205, 8 7/64" |
| Weight (kg/lb) | 1.3, 2.9 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.56, 19.8 |
| Air Hose Size (mm/in) | 8.0, 5/16" |
FUJI TAPPERS FT-6BX-1 (Universal Tapping Chuck Type)
| Model | FT-6BX-1 (Universal Tapping Chuck Type) |
| Tapping Capacity (Guidance) Steel(mm/ in),Aluminum(mm/ in) | 6, 1/4" / 8, 5/16" |
| Free Speed min-1 (R/L) | 2,000, 2,000 |
| Type and Size of Spindle (Tapper #) | J.T.#1 |
| Chuck Capacity (M.T.#) | 8 |
| Overall Length (mm/in) | 240, 9 29/64" |
| Weight (kg/lb) | 1.3, 2.9 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.56, 19.8 |
| Air Hose Size (mm/in) | 8.0, 5/16" |
FUJI TAPPERS FT-8PX-1
| Model | FT-8PX-1 |
| Tapping Capacity (Guidance) Steel(mm/ in),Aluminum(mm/ in) | 8, 5/16" / 10, 3/8" |
| Free Speed min-1 (R/L) | 450, 450 |
| Type and Size of Spindle (Tapper #) | M.T.#1 |
| Chuck Capacity (M.T.#) | 9 |
| Overall Length (mm/in) | 232, 9 9/64" |
| Weight (kg/lb) | 2.0, 4.4 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.50, 17.7 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
FUJI TAPPERS FT-13Z-1
| Model | FT-13Z-1 |
| Tapping Capacity (Guidance) Steel(mm/ in),Aluminum(mm/ in) | 13, 1/2" / - , - |
| Free Speed min-1 (R/L) | 400, 480 |
| Type and Size of Spindle (Tapper #) | J.T.#6 |
| Chuck Capacity (M.T.#) | 13 |
| Overall Length (mm/in) | 384, 15 1/8" |
| Weight (kg/lb) | 4.0, 8.8 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.25, 44.1 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
» Air Inlet Thread Size - FT-6P-1, 6BX-1, 8PX-1: 1/4".
» Air Inlet Thread Size - FT-13Z-1: 3/8".
» Air Inlet Thread Size - FT-13Z-1: 3/8".
