Category >> FUJI NON-REVERSIBLE TYPE F-6SE
รหัส : F-6SEรุ่น : F-6SE

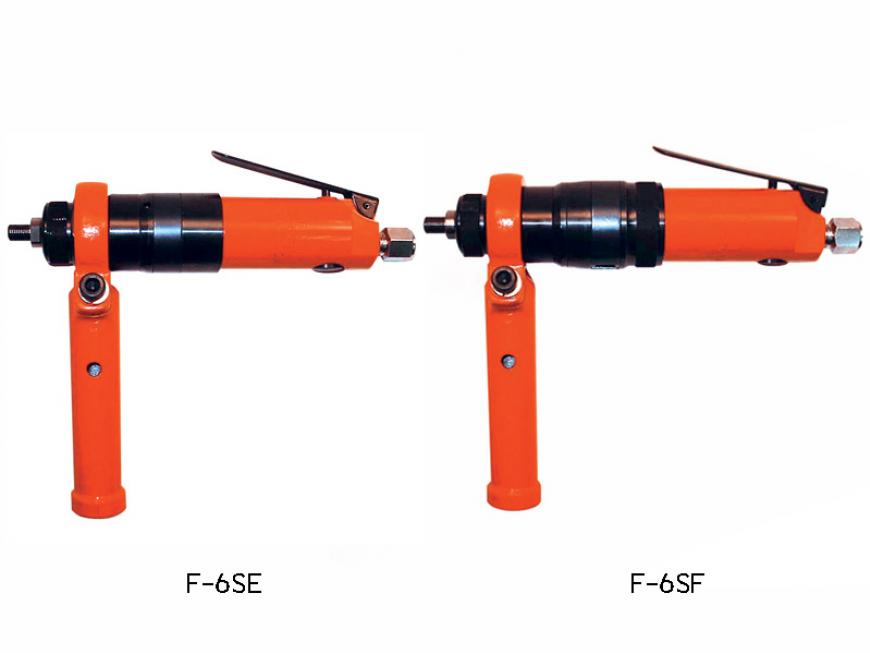

FUJI NON-REVERSIBLE TYPE F-6SE
| Model | F-6SE |
| Stall Torque (N.m/kgf.m/ft.lb) | 15.7, 1.6, 11.6 |
| Horse Power (W/PS) | 260, 0.35 |
| Free Speed (min-1) | 600 |
| Overall Length (mm/in) | 210, 8 9/32" |
| Spindle Thread Size (in) | 3/8-24UNF |
| Weight (kg/lb) | 1.0, 2.2 |
| Air Consumption (m3/min, ft3/min) | 0.42, 14.8 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
FUJI NON-REVERSIBLE TYPE F-6SF
| Model | F-6SF |
| Stall Torque (N.m/kgf.m/ft.lb) | 28.4, 2.9, 21.0 |
| Horse Power (W/PS) | 260, 0.35 |
| Free Speed (min-1) | 300 |
| Overall Length (mm/in) | 225, 8 55/64" |
| Spindle Thread Size (in) | 3/8-24UNF |
| Weight (kg/lb) | 1.1, 2.4 |
| Air Consumption (m3/min, ft3/min) | 0.43, 15.2 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
FUJI NON-REVERSIBLE TYPE F-10MT
| Model | F-10MT |
| Stall Torque (N.m/kgf.m/ft.lb) | 78.5, 8.0, 57.8 |
| Horse Power (W/PS) | 370, 0.50 |
| Free Speed (min-1) | 180 |
| Overall Length (mm/in) | 270, 10 41/64" |
| Spindle Thread Size (in) | 1/2-20UNF |
| Weight (kg/lb) | 3.4, 7.5 |
| Air Consumption (m3/min, ft3/min) | 0.63, 22.3 |
| Air Hose Size (mm/in) | 9.5, 3/8" |
» Air Inlet Thread Size - PT or NPT 1/4".
» Specify type of spindle when ordering.
» Specify type of spindle when ordering.
