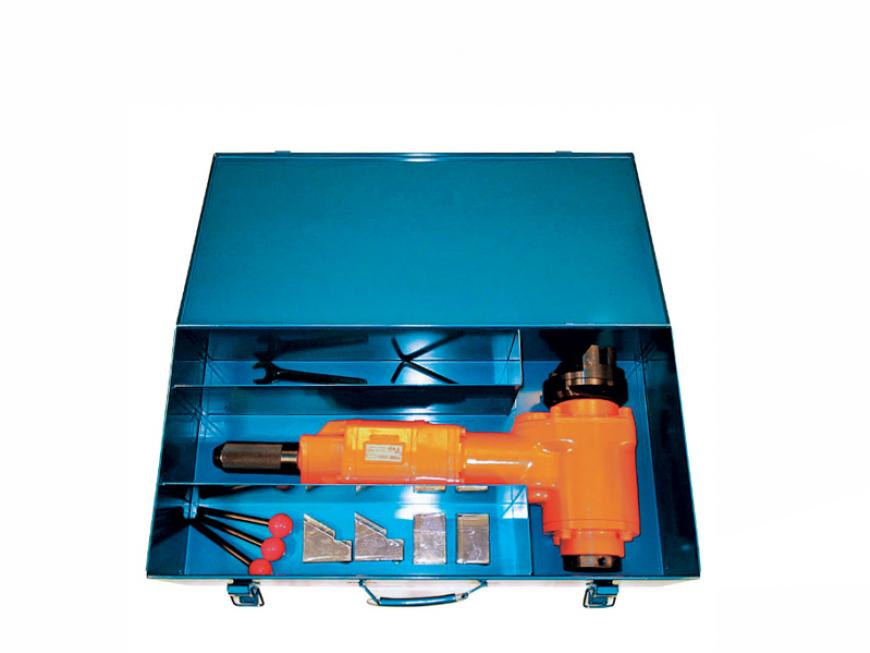

Category >> FUJI PIPE BEVELLING MACHINES SET FBM-300-2S
รหัส : FBM-300-2Sรุ่น : FBM-300-2S
FUJI PIPE BEVELLING MACHINES SET FBM-300-2S
| Model and Assortment | FBM-300-2S |
| Capacity Pipe Inside Diameter (mm/in) | 80-120, 3 9/64-4 23/32" |
| Stall Torque (N.m/kgf.m/ft.lb) | 431.0, 44.0, 318.2 |
| Rotational Frequency (min-1) | 75 |
| Feed Length (mm/in) | 60, 2 23/64" |
| Side to Center (mm/in) | 56, 2 13/64" |
| Overall Length (mm/in) | 524, 20 5/8" |
| Weight (kg/lb) | 23.7, 52.1 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.60, 56.5 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
FUJI PIPE BEVELLING MACHINES SET FBM-300-3S
| Model and Assortment | FBM-300-3S |
| Capacity Pipe Inside Diameter (mm/in) | 120-240, 4 23/32-9 29/64" |
| Stall Torque (N.m/kgf.m/ft.lb) | 431.0, 44.0, 318.2 |
| Rotational Frequency (min-1) | 75 |
| Feed Length (mm/in) | 60, 2 23/64" |
| Side to Center (mm/in) | 135, 5 5/16" |
| Overall Length (mm/in) | 603, 23 47/64" |
| Weight (kg/lb) | 26.8, 60.0 |
| Maximum Air Consumption (m3/min, ft3/min) | 1.60, 56.5 |
| Air Hose Size (mm/in) | 12.7, 1/2" |
FUJI PIPE BEVELLING MACHINES SET FBM-300-4S
| Model and Assortment | FBM-300-4S | ||
| Capacity Pipe Inside Diameter (mm/in) | 80-240, 3 9/64-9 29/64" | ||
| Air Hose Size (mm/in) | 12.7, 1/2" | ||
| Supplied with a full set of Chuck Assembles and Tool Holder Assembles. | |||
» Air Inlet Thread Size: FBM-300: PT or NPT 1/2".
