Category >> FUJI PIPE BEVELLING MACHINES SET FBM-80A-2S
รหัส : FBM-80A-2Sรุ่น : FBM-80A-2S

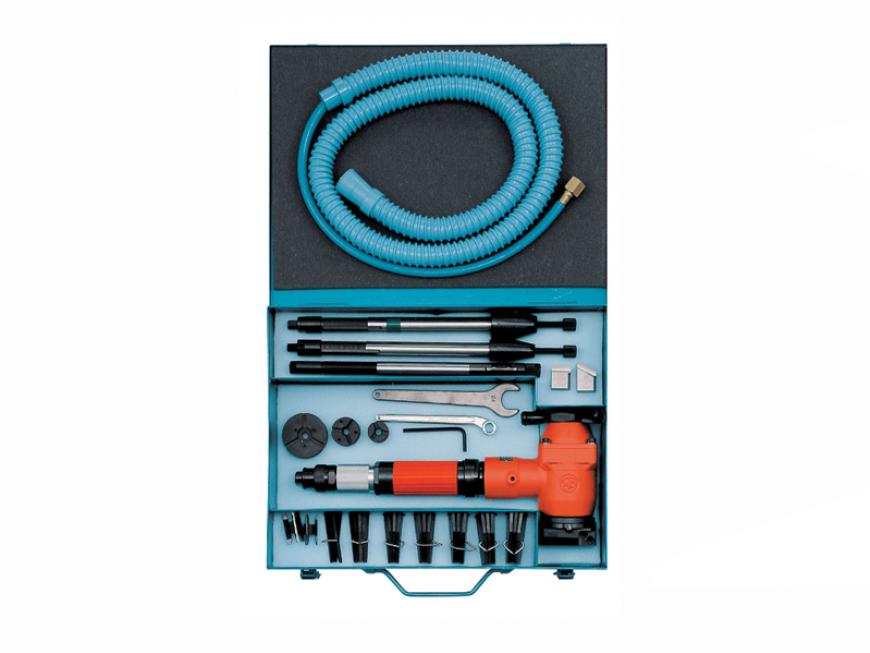

FUJI PIPE BEVELLING MACHINES SET FBM-80A-2S
| Model and Assortment | FBM-80A-2S |
| Capacity Pipe Inside Diameter (mm/in) | 30-40, 1 3/16-1 9/16" |
| Stall Torque (N.m/kgf.m/ft.lb) | 113.0, 11.5, 83.2 |
| Rotational Frequency (min-1) | 100 |
| Feed Length (mm/in) | 30, 1/3/16" |
| Side to Center (mm/in) | 39, 1 35/64" |
| Overall Length (mm/in) | 403, 15 7/8" |
| Weight (kg/lb) | 6.5, 14.3 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.60, 21.2 |
| Air Hose Size (mm/in) | 8, 5/16" |
FUJI PIPE BEVELLING MACHINES SET FBM-80A-3S
| Model and Assortment | FBM-80A-3S |
| Capacity Pipe Inside Diameter (mm/in) | 40-80, 1 9/16-3 1/8" |
| Stall Torque (N.m/kgf.m/ft.lb) | 113.0, 11.5, 83.2 |
| Rotational Frequency (min-1) | 100 |
| Feed Length (mm/in) | 30, 1/3/16" |
| Side to Center (mm/in) | 39, 1 35/64" |
| Overall Length (mm/in) | 403, 15 7/8" |
| Weight (kg/lb) | 6.7, 14.7 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.60, 21.2 |
| Air Hose Size (mm/in) | 8, 5/16" |
FUJI PIPE BEVELLING MACHINES SET FBM-80A-4S
| Model and Assortment | FBM-80A-4S | |||
| Capacity Pipe Inside Diameter (mm/in) | 30-80, 1 3/16-3-1/8" | |||
| Air Hose Size (mm/in) | 8, 5/16" | |||
| FBM-80A-4 is supplied with the Chuck Assembles attached to FBM-80A-2 and FBM-80A-3 | ||||
FUJI PIPE BEVELLING MACHINES SET FBM-80A-5S
| Model and Assortment | FBM-80A-5S |
| Capacity Pipe Inside Diameter (mm/in) | 20-29, 2 5/32-1 5/32" |
| Stall Torque (N.m/kgf.m/ft.lb) | 113.0, 11.5, 83.2 |
| Rotational Frequency (min-1) | 100 |
| Feed Length (mm/in) | 30, 1/3/16" |
| Side to Center (mm/in) | 39, 1 35/64" |
| Overall Length (mm/in) | 403, 15 7/8" |
| Weight (kg/lb) | 6.7, 14.7 |
| Maximum Air Consumption (m3/min, ft3/min) | 0.60, 21.2 |
| Air Hose Size (mm/in) | 8, 5/16" |
FUJI PIPE BEVELLING MACHINES SET FBM-80A-6S
| Model and Assortment | FBM-80A-6S | |||
| Capacity Pipe Inside Diameter (mm/in) | 20-80, 2 5/32-3 1/8" | |||
| Air Hose Size (mm/in) | 8, 5/16" | |||
| FBM-80A-6 is supplied with a full range of Chuck Assembles and Tool Holder Assembles | ||||
» Air Inlet Thread Size: 80A: PT or NPT 1/4"
