Category >> NES ADJUSTABLE RE-THREADING TAP
รหัส : 090-92-22รุ่น : 090-92-22

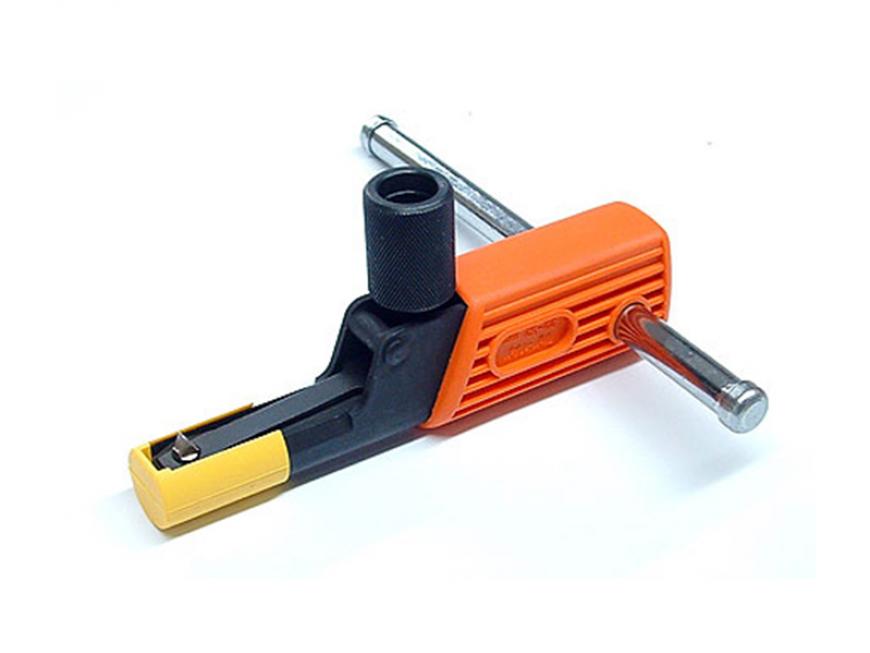

NO. S 90-92 " NES" ADJUSTABLE RE-THREADING TAP
•Quickly adjustable to any thread diameter and pitch within the size range indicated on the tool.
•Applicable to all kinds of thread - inch, metric, RH or LH, fine or coarse.
•A major advantage over taps is the ability to enter below the first damaged grooves - often at the
•start of the thread - and work in an outward direction.
•The blade - made of high speed steel (62RC) - is guided by the existing undamaged thread to
regroove the damaged section.
•Comes with 60° blade.
| รหัสสินค้า | Model No. | Threaded Hole Dia. Range (mm/inch) | L x B x H (mm) | Rod Lgth (mm) | Weight (g) |
| 090-92-22 | iNes22 | 12-16 / 1/2 - 5/8" | 109 x 18 x 45 | 136 | 150 |
| 090-92-23 | iNes23 | 16-20 / 11/16 - 13/16" | 111 x 21 x 53 | 146 | 220 |
| 090-92-24 | iNes24 | 22-32 / 7/8 - 1-1/4" | 136 x 27 x 64 | 161 | 435 |
| 090-92-25 | iNes25 | 32-54 / 1-1/4 - 2-1/8" | 163 x 38 x 81 | 192 | 920 |
| รหัสสินค้า | Replacement Blades |
| 090-92-RK2255 | 55° for iNes 22 |
| 090-92-RK2260 | 60° for iNes 22 |
| 090-92-RK2355 | 55° for iNes 23 |
| 090-92-RK2360 | 60° for iNes 23 |
| 090-92-RK2460 | 60° for iNes 24 |
| 090-92-RK2560 | 60° for iNes 25 |
