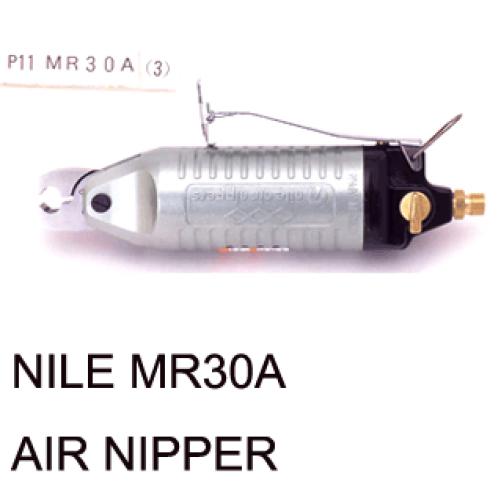

Category >> คีมตัดลม NILE Standard MR30A
รหัส : 002-71-MR30A รุ่น : MR30A
Model No. MR30A, Medium-size-fits,
Clamp holding the air.
＊FEATURE：
．MR30A ：Driving force for most standard cutting machine can cut, curl, bend, squeeze, press, and other employment opportunities.
＊SPECIFICATIONS：
＊Remarks:
．The standard reference in this section the shape of the standard blade blade.
＊BLADE NUMBER：
＊APPLICATION OF BLADES（for cutting materials）：
．S－type Blades for copper.
．P－type Blades for steel.
．Z－type Blades for piano wire.
．F－type Blades for plastics.
．FD－type Blades for plastics.
．A－type Blades for crimping of non insulated.
．AR－type Blades for crimping of insulated
Clamp holding the air.
＊FEATURE：
．MR30A ：Driving force for most standard cutting machine can cut, curl, bend, squeeze, press, and other employment opportunities.
＊SPECIFICATIONS：
| Model | Overall length(mm) | Weight(g) | Grip size Diameter (mm) | Air consumption(Cm3/stroke) | Power (approx.)(N) | Air pressure(MPa) |
| MR30A | 191 | 520 | 56 | 584 | 2740 | 0.5 〜 0.6 |
．The standard reference in this section the shape of the standard blade blade.
＊BLADE NUMBER：
| Model | Blade No. Carbide tipped | Cutting capacity (diameter = mm) | |||||
| Steel wire | Copper wire | Piano wire | Crimping | Plastic (soft) | Plastic (hard) | ||
| MR30A | S7P, S7PS, EP10P, CR8P | 2.8 | 3.3 | - | - | - | - |
| *Z8P, ZCR8P | 2.8 | 3.3 | 1.2 | - | - | - | |
| F9P，FD9P | - | - | - | - | 10.0 | 6.5 | |
| A8P，AR8P | - | - | - | 1.25/2.0 | - | - | |
＊APPLICATION OF BLADES（for cutting materials）：
．S－type Blades for copper.
．P－type Blades for steel.
．Z－type Blades for piano wire.
．F－type Blades for plastics.
．FD－type Blades for plastics.
．A－type Blades for crimping of non insulated.
．AR－type Blades for crimping of insulated
