Category >> คีมตัดลม NILE ยาว 155มม.Power 0.5~0.6MPa
รหัส : 002-71-MR20รุ่น : MR20

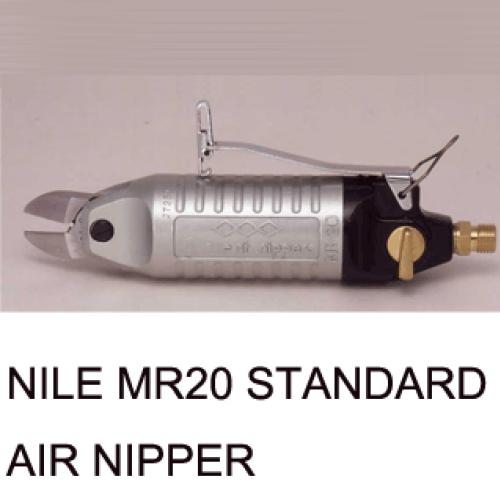

Model No. MR20, MEDIUM GENERAL PURPOSE TYPE,
AIR NIPPER HAND-HELD.
＊FEATURES：
．MR20：An easy-to-use medium-sized cutter with a wide range of usage including simple caulking and bending.
＊SPECIFICATIONS：
＊REMARK：
．Refer to the section of Standard Blades for the shapes of standard blades.
＊BLADE NUMBER：
＊APPLICATION OF BLADES（for cutting materials）：
．S－type Blades for copper.
．P－type Blades for steel.
．Z－type Blades for piano wire.
．F－type Blades for plastics.
．FD－type Blades for plastics.
．A－type Blades for crimping of non insulated.
．AR－type Blades for crimping of insulated.
AIR NIPPER HAND-HELD.
＊FEATURES：
．MR20：An easy-to-use medium-sized cutter with a wide range of usage including simple caulking and bending.
＊SPECIFICATIONS：
| Model No. | Overall length(mm) | Weight(g) | Grip Size Diameter (mm) | Air Consumption(cm3／stroke) | Power (approx.)(N) | Air pressure(MPa) |
| MR20 | 155 | 340 | 45 | 230 | 1,370 | 0.5～0.6 |
．Refer to the section of Standard Blades for the shapes of standard blades.
＊BLADE NUMBER：
| Model No. | Blade No. ＊Carbide tipped | Cutting capacity ( Diameter＝mm ) | |||||
| Steel wire | Copper wire | Piano wire | Crimping | Plastics(Soft) | Plastics(Hard) | ||
| MR20 | S5, S5S, P6, EP6, CR6 | 2.0 | 2.6 | － | － | － | － |
| ＊Z6, ZCR6 | 2.0 | 2.6 | 1.0 | － | － | － | |
| F5, FD5 | － | － | － | － | 7.0 | 5.0 | |
＊APPLICATION OF BLADES（for cutting materials）：
．S－type Blades for copper.
．P－type Blades for steel.
．Z－type Blades for piano wire.
．F－type Blades for plastics.
．FD－type Blades for plastics.
．A－type Blades for crimping of non insulated.
．AR－type Blades for crimping of insulated.
