Category >> OMRON MiniSafe® MS4600 Series Safety Light Curtain With Transmitter
รหัส : MS46-14-785-Q2-Xรุ่น : MS46-14-785-Q2-X

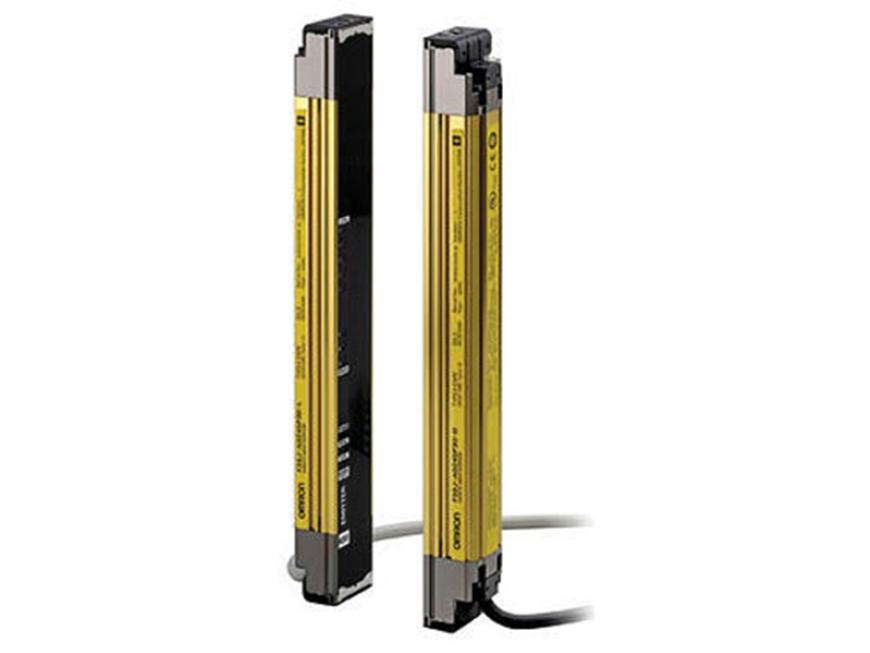

OMRON MiniSafe® MS4600 Series Safety Light Curtain With Transmitter
Model MS46-14-785-Q2-X
| Vendor: | Omron |
| Cat #: | MS46-20-610-Q2-X |
| Part #: | 173296 |
| SKU: | 95332 |
| UPC #: | 006085000003 |
| PRODUCT SPECIFICATIONS |
| Amperage Rating | 50 Milli-Amp Steady State at 24 Volt DC MPCE Monitoring Circuit |
| Application | Used to Guard the Perimeter of a Large Filter Press |
| Compact Size | 35 mm x 50 mm |
| Connection | 8-Pin Receiver, 3-Pin Standard Transmitter, 5-Pin With MTS |
| Degree Of Protection | IP65 |
| Effective Aperture Angle | +/-2.5 Degree Maximum (Transmitter And Receiver At Operating Range Greater Than 3 m) |
| Enclosure | NEMA 4, 12 |
| Environmental Conditions | Maximum 95% Non-Condensing Relative Humidity |
| Item | Safety Light Curtain with Transmitter |
| Material | Polyurethane Powder Painted Aluminum |
| Mfr/Vendor | Omron |
| Number Of Beams | 56 |
| Operating Temperature | 0 to 55 deg C |
| Output | Two PNP Outputs Sourcing 500 Milli-Amp Max Safety, One NPN Output Sinking 100 Milli-Amp Max Or One PNP Output Sourcing 100 Milli-Amp Auxiliary |
| Protected Heights | 611 mm |
| Resolution | 20 mm |
| Response Time | <0.023 sec |
| Select Code | AUTOMATION |
| Sensing Range | 0.3 - 9 mm |
| ShortDescriptionStripped | Omron-MS46-20-610-Q2-X-Sti-MiniSafe-MS4600-Series |
| Standards | cULus Listed File #LR90200, CSA Certified US Listed, CE Certified, DeviceNet, TUV Approved, ANSI/RIA R15.06-1999, ANSI B11.19-2003, OSHA 1910.217(c), OSHA 1910.212 |
| Sub Brand | Sti® MiniSafe® |
| Type | MS4600 Series |
| UPC | 6085000003 |
| Voltage Rating | 24 Volt DC |
| description | Omron Sti® MiniSafe® MS4600 Series Light curtain comes with a transmitter and features polyurethane powder painted aluminum construction for enhanced durability. It has a sensor that is capable of sensing objects up to distance of 0.3 - 9 mm for 30 mm object resolution. It includes 56 beams and intends to provide protection up to a height of 611 mm. It features a 1 m transmitter cable. Reliable light curtain has a steady state current rating of 50 milli-Amps at 24 VDC and has input power rating of 14 Watts. It operates at a temperature range of 0 to 55 deg C. Curtain includes NC or NO start/restart input momentary contact. |
| Light curtain uses 850 nm GaAlAs light emitting diode for light source. Curtain in two-box design includes individual beam indicators with exact channel select option and has MPCE monitoring circuit. It is IP65 rated for hazardous environment conditions. It offers choice for in-line cable with QD connector or QD connector only and has adjustable mounting brackets. Curtain comes with two PNP safety outputs designed to directly switch machine primary control elements. It is used to guard the perimeter of a large filter press. Light curtain is UL/cULus listed and CSA certified. | |
| feature#1 | No cable required between transmitter and receiver |
| feature#2 | Available with one NPN or one PNP auxiliary output |
| feature#3 | Floating blanking |
| feature#4 | Choice of operating modes |
| feature#5 | 10 g for 0.016 sec, 1000 shocks for each axes on two axes |
| feature#6 | 14 Watt (without load on the outputs) input power |
| feature#7 | NC or NO momentary contact (20 Milli-Amp consumption) start/restart input |
| feature#8 | Optional cables are available in 10, 15, 30 and 50 m lengths |
